Crown Load Wheel Assembly for Pallet Trucks
CR 93656-010-A
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Reference Diagrams
Visit our diagram page for part references to popular models
Product Description

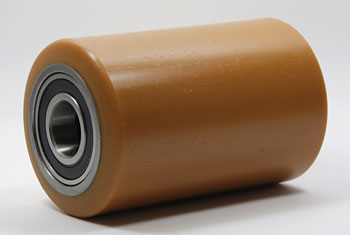

Crown CR 93656-010-A is a heavy-duty load wheel assembly engineered for demanding electric pallet truck and lift truck operations. Featuring integrated shoulder bearing construction and premium polyurethane tread, this direct replacement wheel delivers superior load capacity, durability, and resistance to flat-spotting and chunking on high-traffic warehouse floors. Ideal for sustained, intensive material handling environments requiring reliable, long-lasting performance.
Specifications
Material & Construction
| Tread Material | Polyurethane, compound |
Dimensions & Fit
| Integrated Shoulder Bearing | Yes |
Part Numbers
| Manufacturer Part Number | CR 93656-010-A |
| Cross-Reference Part Numbers | Replaces CR93656-010, supersedes CR93656010, equivalent to 93656010 |
Performance
| Tread Hardness | Shore A 95–97 |
| Intended Service | High load capacity; flat-spotting and chunking resistance on demanding floors |
| Application | Electric pallet trucks, lift trucks, demanding warehouse operations |
Frequently Asked Questions
Q: What are the key specifications of the CR 93656-010-A load wheel?
A: The CR 93656-010-A features integrated shoulder bearing. The polyurethane tread has Shore A 95–97 hardness. This assembly is designed for high load capacity in demanding electric pallet truck and lift truck applications.
Q: Does the CR 93656-010-A replace earlier CR 93656 versions?
A: Yes, the CR 93656-010-A supersedes CR 93656-010 and CR93656010 earlier variants. It is equivalent to the 93656010 designation. The updated design provides enhanced hardness (95–97A vs. 95A) and improved shoulder bearing integration for extended durability.
Q: What is the difference between the CR 93656-010-A and the standard CR 93656?
A: The CR 93656-010-A has a slightly narrower tread width and higher hardness range (95–97A vs. 95A). The integrated shoulder bearing in the -010-A model reduces assembly complexity and increases load handling capacity. Choose based on your Crown lift truck model requirements.
Q: Why is the hardness range 95–97A instead of a single value?
A: The 95–97A range indicates acceptable manufacturing variance in the polyurethane compound hardness. This tolerance ensures consistent performance across production batches. Wheels within this range perform identically for Crown electric pallet truck and lift truck applications.
Q: Is the integrated shoulder bearing design an advantage?
A: Yes, the integrated shoulder bearing in the CR 93656-010-A simplifies construction, reduces potential failure points, and improves load distribution. This design supports sustained high-capacity lifting in demanding warehouse environments. It is a refinement over earlier versions with separate bearing components.
Q: How do I verify the CR 93656-010-A fits my Crown equipment?
A: Confirm your Crown lift truck or pallet truck model and serial range in the equipment manual. Verify that the specifications match those listed for your machine. Cross-check the manufacturer part number CR 93656-010-A against your parts diagram.
