Product Description

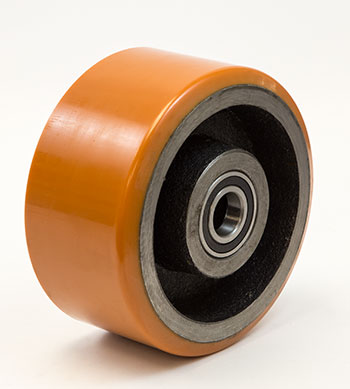

Caterpillar CT 1050236-A Load Wheel Assembly for electric pallet jack applications features a 3.25 inch diameter by 2.00 inch wide polyurethane tread (95A durometer), steel core, and precision 6203-2RS sealed bearing. Compatible with select Caterpillar electric lift truck models and replaces previous part numbers CT1050236 and 1050236.
Specifications
Material
| Tread Material | Polyurethane ( 95A durometer) |
| Tread Hardness | 95 Shore A (polyurethane) |
| Wheel Core Material | Machined steel with high-strength polymer tread bond |
| Bearing Seals | Dual nitrile rubber seals (6203-2RS bearing configuration) |
Part Numbers
| OEM Part Number | CT 1050236-A |
| Manufacturer Part Number | CT 1050236-A |
| Cross-Reference Part Numbers | CT1050236, CT-1050236, 1050236 |
| Compatibility | Caterpillar electric pallet truck series (models requiring 2-inch wide load wheel assembly, verify model compatibility by serial prefix) |
Frequently Asked Questions
Q: What are the physical dimensions of the CT 1050236-A load wheel assembly?
A: The CT 1050236-A features a 3.25 inch diameter by 2.00 inch width polyurethane tread. These dimensions are critical for proper mounting and clearance verification on your Caterpillar electric pallet truck.
Q: What bearing is included in the CT 1050236-A assembly?
A: The CT 1050236-A is equipped with a precision 6203-2RS sealed bearing. The 2RS designation indicates double rubber seals on both sides, which provide protection against dirt, moisture, and debris ingress for extended bearing life.
Q: Does the CT 1050236-A have a steel core, and what is its purpose?
A: Yes, the CT 1050236-A load wheel assembly includes a steel core. The steel structure provides structural strength to handle sustained loads and transmit drive force from the motor to the polyurethane tread while maintaining wheel concentricity.
Q: What polyurethane hardness does the CT 1050236-A tread have?
A: The CT 1050236-A tread is manufactured with polyurethane material at 95A durometer hardness. This medium-high durometer provides a good balance between abrasion resistance and grip on standard warehouse floor surfaces.
Q: Which Caterpillar electric pallet truck models is the CT 1050236-A compatible with?
A: The CT 1050236-A is designed for Caterpillar electric pallet truck series models requiring a 2-inch wide load wheel assembly. Verify model compatibility by checking your equipment serial prefix and original part specification. It replaces previous part numbers CT1050236 and 1050236.
