Product Description

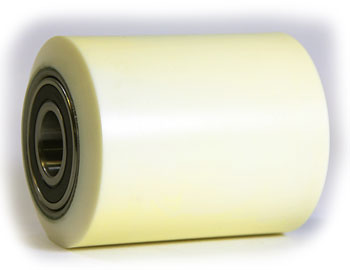

Caterpillar CT 1086865-XL-A Load Wheel Assembly for electric lift truck applications. Polyurethane tread, 3.25 in. OD × 4.25 in. wide, 20 mm keyed bore, supplied with 6204 sealed ball bearings, compatible with select Caterpillar pallet jacks. Equivalent to CT1086865-XL, 1086865, and 1086865-XL.
Specifications
Material
| Wheel Tread Material | Polyurethane, hardness 97A |
| Hub Material | Machined steel, ASTM A36 |
Part Numbers
| Cross-Reference Part Numbers | Equivalent to CT1086865-XL, CT1086865, 1086865, replaces 1086865-XL |
| OEM Part Number | CT 1086865-XL-A |
| Manufacturer Part Number | CT1086865-XL-A |
| Compatibility | Compatible with Caterpillar electric lift truck and pallet jack models using CT 1086865-XL-A load wheel assembly |
Performance
| Service Factor | 1.0 continuous duty |
Frequently Asked Questions
Q: What are the dimensions of the CT 1086865-XL-A load wheel assembly?
A: The CT 1086865-XL-A measures 3.25 inches outer diameter by 4.25 inches wide with a 20 mm keyed bore. These dimensions differentiate it from standard variants and ensure proper fit on keyed axles.
Q: What bearing type comes with the CT 1086865-XL-A?
A: The CT 1086865-XL-A is supplied with 6204 sealed ball bearings. These precision bearings reduce friction and provide reliable operation under continuous load cycles typical of electric lift truck applications.
Q: What Caterpillar electric pallet jack models are compatible with the CT 1086865-XL-A?
A: The CT 1086865-XL-A is compatible with select Caterpillar pallet jack and electric lift truck models. Verify your equipment model against the compatible list to ensure the 20 mm keyed bore matches your axle configuration.
Q: What are all the equivalent part numbers for the CT 1086865-XL-A?
A: CT 1086865-XL-A is equivalent to CT1086865-XL, CT1086865, 1086865, and replaces the older designation 1086865-XL. Use these cross-references when ordering or checking legacy documentation.
Q: Why is the CT 1086865-XL-A supplied as a complete assembly with bearings?
A: The CT 1086865-XL-A comes pre-assembled with sealed bearings for convenience and to ensure proper bearing installation. This reduces field assembly errors and guarantees OEM-specification bearing fit and preload.
Q: How does the 20 mm keyed bore differ from a standard bore?
A: A 20 mm keyed bore includes a keyway that locks the wheel to the axle, preventing rotation during installation and removing stress from the bore. This design is standard on many Caterpillar electric lift truck models.
