Product Description

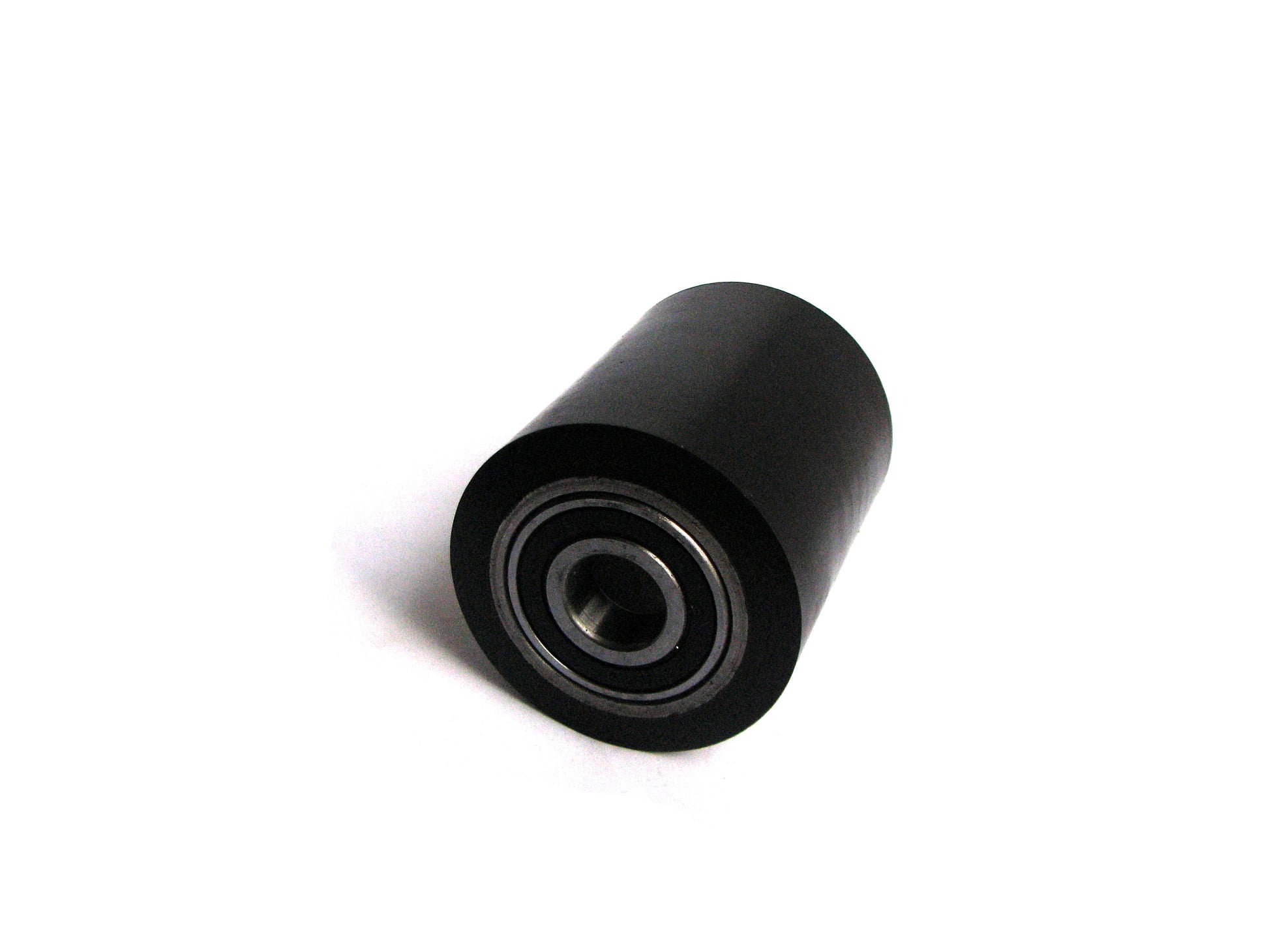

Heavy-duty polyurethane load wheel assembly with 2.75-inch diameter and 3.75-inch tread width, featuring a 6204 deep groove ball bearing (20mm inner diameter). Engineered for manual and electric pallet jack applications requiring robust tread, durability, and precise bearing fit across multiple warehouse and distribution environments.
Specifications
Material & Construction
| Wheel Construction | Polyurethane tread bonded to machined steel hub |
| Bearing Type | Single-row deep groove ball bearing, 6204 |
| Wheel Diameter | 2.75 inches |
| Tread Width | 3.75 inches |
| Inner Diameter (Bearing) | 20mm |
Part Numbers
| Manufacturer Part Number | WL 12003 |
Frequently Asked Questions
Q: What is the WL 12003 load wheel designed for?
A: The WL 12003 is a heavy-duty polyurethane load wheel assembly designed for manual and powered pallet jack applications requiring robust tread and precise bearing fit. The 6204 bearing and 2.75 inch diameter specification fit multiple pallet jack models from Crown, Toyota, Raymond, Yale, and similar manufacturers used in distribution and warehouse environments.
Q: What are the exact specifications of the WL 12003?
A: Wheel diameter: 2.75 inch. Tread width: 3.75 inch. Bearing: 6204 single-row deep groove ball bearing with 20 mm inner diameter. Core: Machined steel hub with polyurethane tread bonded to the surface. This configuration provides load capacity and durability required for pallet handling and material transport applications.
Q: How does the WL 12003 compare to smaller diameter wheels like the WL 12002?
A: The WL 12003 is larger (2.75 inch vs. 2.00 inch) and uses a larger bearing (6204 with 20 mm ID vs. 6003Z with 17 mm ID). The heavier-duty construction suits pallet jacks carrying higher loads. Do not substitute smaller diameter wheels on equipment designed for WL 12003 specification, as undersized wheels cause bearing failure and instability.
Q: Does the WL 12003 work in cold storage environments?
A: Standard polyurethane tread becomes stiff and loses grip in temperatures below freezing. For cold storage pallet jack applications, verify that the standard polyurethane compound meets your temperature requirements. Contact us if your equipment operates in subfreezing conditions, as cold-rated compounds may be available.
Q: What is the typical replacement interval for the WL 12003?
A: Load wheel life depends on load frequency, weight, floor surface, and floor conditions. Heavy use in distribution environments typically requires replacement every 2-4 years. Inspect regularly for tread wear, cracking, and flat spots. Replace when these conditions appear or when bearing play becomes excessive.
Q: Can the WL 12003 bearing be serviced or must the entire wheel assembly be replaced?
A: The WL 12003 is supplied as a complete bearing-to-tread assembly. If the bearing fails, the entire assembly must be replaced. The machined steel core and bonded polyurethane tread cannot be separated for bearing-only replacement, making full assembly replacement the practical and reliable solution.
