Product Description

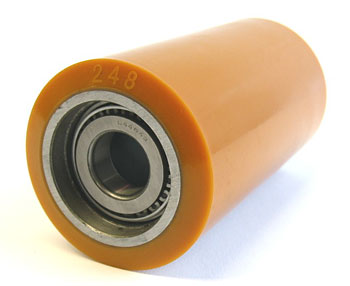

The GW 248-A Load Wheel Assembly is designed specifically for electric lift trucks, providing durability and performance in demanding environments. With a robust polyurethane tread and a steel core, this wheel assembly ensures a reliable operation with a high static load capacity.
Specifications: 3.250 inch diameter x 6.000 inch width (3.250" x 6.000" | 3.25 x 6 wheel | 3-1/4 x 6 | 82.55mm x 152.40mm) | Bearing ID: 25mm (0.984 inch bore | 25.000mm ID)
• Polyurethane tread for enhanced grip and wear resistance
• Steel core for added strength and durability
• Rated at 95 Shore A hardness for optimal performance
• Static load capacity of 1000 lbs for heavy-duty applications
This load wheel assembly is compatible with various electric lift trucks, making it an essential component for efficient material handling.
Specifications
Material
| Wheel Material | Polyurethane tread |
| Core Material | Steel core |
Material & Construction
| Finish | Polyurethane cast, natural finish |
Part Numbers
| OEM Part Number | GW 248-A |
| Manufacturer Part Number | GW 248-A |
Wheel Dimensions
| Outside Diameter | 3.25 |
| Width Side to Side | 6 |
Frequently Asked Questions
Q: What does a 25mm bearing ID mean and how does it affect installation?
A: The bearing ID (inner diameter) is 25mm or 0.984 inch. This is the axle shaft diameter that passes through the wheel center. If your truck axle is 25mm, GW 248-A will fit. If your axle is 27mm or another size, the wheel will not mount or will be dangerously loose. Always measure your existing axle or verify your truck model against the parts list before ordering.
Q: Is GW 248-A a direct replacement for the original GW 248 wheel on my electric jack?
A: Only if your truck uses 25mm axles. GW 248-A is not interchangeable with GW 248. GW 248-A is a complete assembly with steel core and polyurethane tread. It will not fit on a truck designed for 27mm bearing wheels. Confirm your current wheel bearing size by measuring the axle shaft or reviewing your jack serial documentation.
Q: Can the bearings in the GW 248-A assembly be repacked or relubricated?
A: GW 248-A comes as a sealed unit. The bearings are not designed for field repacking. If bearings begin to wear or the wheel rotates rough, the entire assembly must be replaced. Attempting to disassemble sealed bearings risks contamination and improper reassembly. Replacement is more cost-effective and safer than repair attempts.
Q: What maintenance schedule should I follow for GW 248-A wheels on my electric lift truck?
A: Inspect wheels weekly for debris, flat spots, or cracks. Clean polyurethane tread regularly to maintain grip, especially in oily warehouse conditions. Check that wheels rotate freely without noise or drag. In heavy use (8+ hours daily), expect wheel replacement every 12 to 18 months. Replace sooner if you see significant wear or loss of traction.
Q: What is the expected lifespan of the GW 248-A assembly in normal warehouse operation?
A: Under typical use (moderate loads, indoor concrete floors, 6 to 8 hours daily), GW 248-A wheels last 18 to 24 months. Heavy use or outdoor exposure reduces lifespan to 12 to 15 months. Operating on rough or oily surfaces accelerates wear. Track your replacement history to establish a preventive maintenance schedule for your fleet.
Q: Are GW 248-A wheels suitable for high-speed pallet jack operations?
A: GW 248-A is designed for standard electric pallet truck applications at normal warehouse speeds. It is not rated for high-speed or tow-tractor duty. Exceeding design parameters will cause premature bearing failure and wheel degradation. If your operation requires higher speeds, consult your truck OEM for alternative wheel assemblies rated for that application.
