Product Description

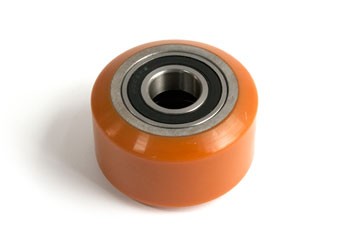

Load wheel assembly GW 627-A1 is specifically designed for electric lift truck applications, ensuring optimal performance and durability. With a diameter of 3.25 inches and a width of 2.00 inches, this load wheel is constructed from high-quality 95A durometer polyurethane, making it ideal for reliable load handling.
Specifications: 3.250 inch diameter x 2.000 inch width (3.250" x 2.000" | 3.25 x 2 wheel | 3-1/4 x 2 | 82.55mm x 50.80mm) | Bearing ID: 20mm (0.787 inch bore | 20.000mm ID)
• Constructed from durable 95A durometer polyurethane
• Suitable for generic electric pallet trucks
• Provides reliable load handling performance
This load wheel assembly is compatible with various electric lift trucks, making it a versatile choice for enhancing your material handling operations.
Specifications
Material & Construction
| Tread Material | Polyurethane compound, Durometer 95A |
Part Numbers
| Cross-Reference Part Numbers | Equivalent to GW627, 627 |
| OEM Part Number | GW 627-A1 |
| Supersedes | 627 |
| Equivalent | GW627 |
Wheel Dimensions
| Material | |
| Outside Diameter | 3.25 |
| Width Side to Side | 2 |
Frequently Asked Questions
Q: Is GW 627-A1 the same as the older GW627?
A: Yes. GW 627-A1 is the current replacement for GW627 and the superseded 627 part number. All three are identical in specifications and interchangeable. If you have legacy documentation referencing GW627 or 627, you can order the GW 627-A1 with confidence.
Q: What bearing size does the GW 627-A1 require?
A: GW 627-A1 requires a 20mm ID (0.787 inch) bearing. Verify bearing bore before purchasing wheels to avoid fitment issues on your truck chassis.
Q: Can I use GW 627-A1 on both drive and load positions?
A: GW 627-A1 is rated as a load wheel for electric lift trucks only. Do not use for drive or steer wheels. Using undersized wheels in wrong positions can cause frame damage and loss of load control.
Q: How often should I replace the GW 627-A1?
A: Replace when tread shows visible wear, cracking, or flat spots. With typical warehouse use, expect 18-24 months. Harder floors and heavier loads reduce wheel life. Inspect weekly during truck maintenance cycles.
Q: What is the maximum load rating per wheel?
A: Maximum load is dependent on truck GVWR and wheel count. GW 627-A1 is designed for even load distribution across all wheels. Do not exceed truck nameplate load rating or bearing capacity may be compromised.
