Product Description

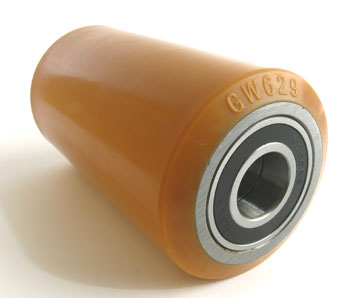

The DuraRun GW629-A load wheel assembly is expertly engineered for electric pallet jack applications, featuring a robust 95A durometer polyurethane construction. This complete assembly includes an integrated bearing system and all necessary mounting hardware, making it an ideal aftermarket replacement for generic electric pallet jack load wheel systems.
Specifications: 3.250 inch diameter x 5.938 inch width (3.250" x 5.938" | 3.25 x 5.94 wheel | 3-1/4 x 5.938 | 82.55mm x 150.83mm) | Bearing ID: 25mm (0.984 inch bore | 25.000mm ID)
• Constructed from durable 95A durometer polyurethane for long-lasting performance
• Includes integrated bearing system for smooth operation
• Comes with all necessary mounting hardware for easy installation
This load wheel assembly is compatible with GP 629-A and GP629-A part numbers, ensuring a seamless fit for your electric pallet jack.
Specifications
Material & Construction
| Wheel Material Composition | Polyurethane polymer compound |
| Material Hardness Rating | 95A durometer Shore A scale |
Part Numbers & Compatibility
| Manufacturer Part Number | GW629-A |
| Cross-Reference Part Numbers | GP 629-A, GP629-A |
| Base Component Part Number | GW 629 |
Wheel Dimensions
| Outside Diameter | 3.25 |
| Width Side to Side | 5.938 |
Frequently Asked Questions
Q: Does the GW 629-A include bearings and hardware or do I need to buy those separately?
A: The GW 629-A is a complete assembly. It includes the integrated bearing system and all necessary mounting hardware. No additional parts are required for installation. The bearing bore ID is 25.000mm. If your jack uses a different bearing size, the GW 629-A will not fit.
Q: What tools and steps are needed to install the GW 629-A on my electric pallet jack?
A: Installation typically requires a wrench or socket set to remove the axle cap screws. Slide off the old wheel assembly. Align the GW 629-A bearing bore with the axle shaft and secure with the provided hardware. Tighten fasteners firmly but do not over-tighten, which can bind the bearing. Verify smooth rotation before returning the jack to service. Consult your jack manufacturer manual for specific torque values.
Q: What other part numbers are equivalent to the GW 629-A assembly?
A: GW 629-A cross-references to GP 629-A, GP629-A, and the base wheel component GW 629. All are 3.250 x 5.938 inch polyurethane load wheels with 95A durometer hardness and 25mm bearing bore. Verify your jack specifications before substituting aftermarket equivalents.
Q: How do I diagnose if my GW 629-A wheel assembly needs replacement?
A: Listen for grinding or squealing sounds during operation, which indicate bearing failure. Inspect for flat spots, chunks missing from the tread, or visible cracking in the polyurethane. Check for steering drift or heavy pulling in one direction. Manually spin each wheel with the jack lifted. If a wheel does not spin freely or stops abruptly, the bearing is seized and the assembly must be replaced.
