Product Description

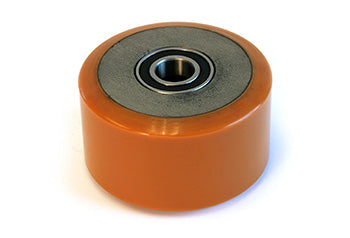

The GW 653-A Polyurethane Load Wheel Assembly is designed for both electric and manual pallet jacks, providing exceptional durability and performance. With a 95A durometer tread, this load wheel offers superior abrasion resistance, making it ideal for heavy-duty applications.
Specifications: 5.000 inch diameter x 2.880 inch width (5.000" x 2.880" | 5 x 2.88 wheel | 5 x 2.88 | 127.00mm x 73.15mm) | Bearing ID: 25mm (0.984 inch bore | 25.000mm ID)
• Made from high-quality polyurethane for enhanced longevity
• Features double-sealed radial ball bearings for smooth operation
• Precision-machined steel hub construction for added strength
This load wheel assembly is compatible with multiple generic and OEM part numbers, ensuring versatility in various pallet jack models.
Specifications
Dimensional Specifications
| Durometer Specification | 95A per ASTM D2240 |
Material & Construction
| Hub Material | Precision-machined steel core |
| Finish | Factory poly finish |
Mechanical Specifications
| Wheel Tread Material | Polyurethane, 95A durometer |
| Wheel Hardness Rating | 95A Shore hardness |
Part Numbers & Compatibility
| Manufacturer Part Number | GW 653-A |
| Cross-Reference Part Numbers | GW653-A, GP 653-A, GW653A, GP 653A, 653A |
| OEM Part Number | GW653-A |
| Equivalent Part Number | GP 653-A |
| Supersedes/Replaces | 653A |
Wheel Dimensions
| Outside Diameter | 5 |
| Width Side to Side | 2.88 |
Frequently Asked Questions
Q: What cross-reference part numbers are equivalent to GW 653-A?
A: The GW 653-A is equivalent to GW653-A, GP 653-A, GW653A, GP 653A, and 653A. All these part numbers identify the same 5.000 inch diameter wheel with 25mm bearing ID and 95A durometer polyurethane tread. The GW 653-A supersedes and replaces the 653A part number.
Q: What is the 95A durometer rating and why does it matter?
A: 95A Shore hardness refers to the tread material stiffness. Higher durometer means harder, more abrasion-resistant polyurethane. At 95A, the GW 653-A provides superior resistance to heavy loads and rough floors compared to softer wheels. This specification makes it ideal for high-volume warehouse environments where durability is critical.
Q: Is the GW 653-A suitable for both electric and manual pallet jacks?
A: Yes. The GW 653-A is designed for both electric and manual pallet jack applications. The 5.000 inch diameter and 25mm bearing ID are standard for most pallet jack designs. However, verify your specific jack model specification before ordering to ensure compatibility.
Q: What is the width of the GW 653-A wheel and does it affect fitment?
A: The GW 653-A width is 2.880 inches (73.15mm). Width determines side clearance between the wheel and fork arms. Incorrect width causes rubbing or unsafe operation. Verify your truck requires 2.880 inch width before installation. Standard widths are 2.875 and 2.880 inches, so confirm your specification.
Q: How can I tell if my GW 653-A wheel is failing before it breaks?
A: Warning signs include: surface hardening and loss of grip, visible flat spots or uneven wear, cracks radiating from the bearing hub, squealing or grinding sounds during operation, or visible wobbling. Any of these symptoms mean replacement is needed within one shift to prevent safety hazards or floor damage.
Q: What maintenance extends the life of a GW 653-A wheel?
A: Inspect the wheel weekly for embedded debris and remove manually or with compressed air. Keep the bearing hub clean and free of dirt. Do not operate on excessively rough or sharp surfaces. Rotate pallet jacks regularly if they sit unused to prevent flat-spotting. Replace wheels when tread surface becomes hard or loses grip, typically every 12 to 24 months.
