Product Description

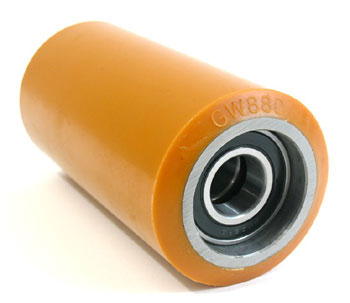

The GW 880-A Polyurethane Load Wheel Assembly is designed specifically for electric lift trucks, providing exceptional durability and performance in demanding applications. This load wheel is engineered to enhance the efficiency of your material handling operations.
Specifications: 3.250 inch diameter x 6.500 inch width (3.250" x 6.500" | 3.25 x 6.5 wheel | 3-1/4 x 6-1/2 | 82.55mm x 165.10mm) | Bearing ID: 25mm (0.984 inch bore | 25.000mm ID)
• Constructed from high-quality polyurethane for superior wear resistance
• Features a 95A durometer tread for optimal traction and stability
• Includes a reliable 6205RS bearing for smooth operation
This load wheel is compatible with select OEM and aftermarket pallet truck models, making it a versatile choice for various electric lift truck applications.
Specifications
Material & Construction
| Tread Material | Polyurethane, 95A Durometer |
| Core Material | Steel |
| Tread Hardness | 95A Shore durometer polyurethane |
Part Numbers
| Manufacturer Part Number | GW 880-A |
| Cross-Reference Part Numbers | Equivalent to GP 880-A, GP880-A |
| Alternate Part Number | GW880-A |
Wheel Dimensions
| Outside Diameter | 3.25 |
| Width Side to Side | 6.5 |
Frequently Asked Questions
Q: What are the equivalent part numbers for GW 880-A?
A: GW 880-A is equivalent to GP 880-A and GP880-A. These three part numbers reference identical wheels: 3.250 inch diameter x 6.500 inch width, 95A polyurethane tread, 25mm bearing ID, steel core construction. When cross-referencing supplier catalogs, all three numbers pull the same physical assembly. Use any of these interchangeably for inventory and ordering purposes.
Q: What bearing type and size does GW 880-A require?
A: GW 880-A requires 25mm ID (0.984 inch bore) bearings. Standard applications use 6205 series deep groove ball bearings. Verify the bearing outer diameter and width match your truck axle configuration. If your fork requires sealed or shielded bearings (ZZ type) for wet or dusty environments, specify that when ordering. Do not force undersized or oversized bearings onto the axle as this will cause binding or wobble.
Q: Is GW 880-A suitable for high-cycle pallet operations?
A: Yes. The 95A Shore durometer polyurethane provides good wear resistance for repetitive load cycles. However, continuous high-speed operation and sustained heavy loads will accelerate tread wear. Inspect wheels monthly on high-cycle systems. If tread is worn to 50 percent depth or shows cracking, schedule replacement before the wheel fails. Standard wheel life is 12 to 24 months depending on load rating, truck usage hours, and floor surface condition.
Q: What happens if you install a GW 880-A wheel on a truck rated for a different load class?
A: Installing an undersized or incorrect wheel creates safety hazards: the wheel may deform or fail under rated load, causing the truck to tip or strand a load. The wheel becomes a limiting component even if the truck frame is rated higher. Always verify the wheel load rating matches your truck model documentation. If documentation is missing, contact the truck manufacturer with the serial number to confirm correct wheel part number before replacement.
Q: How do you remove and install a GW 880-A wheel?
A: Lift the truck on a safety stand or jack. Remove the axle bolt or snap ring holding the wheel. Slide the old wheel and bearing assembly off the axle. Clean the axle and inspect for rust, scoring, or wear. Install new or reused 25mm ID bearings if not pre-installed on the new wheel. Slide the new GW 880-A wheel onto the axle, ensuring it seats fully. Reinstall the axle bolt or snap ring and torque to manufacturer spec (typically 35 to 50 ft-lbs for 25mm axles). Verify the wheel spins freely without binding or wobble before lowering the truck.
