Product Description

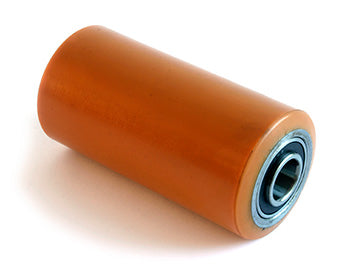

The GW 9141-A-R Load Wheel Assembly is designed specifically for electric pallet trucks, providing reliable performance for heavy load applications. This assembly features a robust construction that ensures durability and longevity in demanding environments.
Specifications: 3.250 inch diameter x 6.500 inch width (3.250" x 6.500" | 3.25 x 6.5 wheel | 3-1/4 x 6-1/2 | 82.55mm x 165.10mm) | Bearing ID: 25mm (0.984 inch bore | 25.000mm ID)
• Made from high-quality 95A polyurethane compound for enhanced wear resistance
• Shoulder bearing type for improved stability and load distribution
• Designed for heavy load and long run applications
This load wheel assembly is compatible with various electric pallet truck models, ensuring a seamless replacement for your existing components.
Specifications
Material
| Shore A Hardness | 95A |
Part Numbers
| Manufacturer Part Number | GW 9141-A-R |
| Cross-Reference Part Numbers | GP 9141-A-R, GP9141-A-R |
| Equivalent Part Numbers | 95A Poly Load Wheel Assembly, GW 9141-A |
| Alternate Part Numbers | GW9141-A, GW-9141-A |
Wheel Dimensions
| Outside Diameter | 3.25 |
| Width Side to Side | 6.5 |
Frequently Asked Questions
Q: Is the GW 9141-A-R compatible with Yale, Hyster, and Crown pallet jacks?
A: The GW 9141-A-R is a generic load wheel assembly compatible with most electric pallet trucks using 25mm bearing ID wheels. Cross-reference as GP 9141-A-R for equivalent fitment. Always verify your current wheel diameter and width (3.25 x 6.5 inches) and bearing bore (25mm) before ordering to confirm compatibility with your specific brand and model.
Q: What is the difference between GW 9141-A-R and GW 9141-A-R-DS?
A: The GW 9141-A-R features standard single seals, while the GW 9141-A-R-DS includes double bearing seals. Double seals provide enhanced protection against moisture and debris in wet or harsh environments. If your truck operates outdoors or in high-moisture conditions, upgrade to the DS variant for longer wheel life.
Q: How do I diagnose if the GW 9141-A-R wheels need replacement?
A: Signs of wheel wear include flat spots or visible chunks missing from the tread, excessive noise or grinding during operation, or the jack lifting slower than normal. Measure the current diameter at its widest point. If diameter is below 3 inches or you observe bearing play (side-to-side movement) at the axle, replacement is needed. Do not continue operating a jack with damaged wheels as load stability and operator safety are compromised.
Q: Is installation plug-and-play or do I need special tools?
A: Installation requires removing the axle bolt (usually 8-12mm socket) and sliding off the old wheel assembly. Install the new GW 9141-A-R by sliding it onto the axle and torqueing the bolt to manufacturer specification (typically 25-35 Nm for pallet jacks). No bearing adjustment is required as this assembly comes with pre-installed bearings. Always replace both drive and load wheels in pairs to ensure even wear and consistent performance.
Q: What is the load capacity and operating limits of the GW 9141-A-R?
A: The GW 9141-A-R is rated for standard pallet jack duty cycles (typically 5000-6000 pound load capacity per truck design). The 95A polyurethane hardness provides durability for concrete and smooth flooring. Operating temperature range is -10 to 50 degrees Celsius. Do not operate on heavily oiled floors or chemical-contaminated surfaces as polyurethane can degrade. Maximum sustained speed is determined by your truck motor and drive system, not the wheel.
Q: How long does the GW 9141-A-R wheel last before replacement?
A: Typical lifespan is 1500-3000 operating hours depending on load, floor conditions, and maintenance. Smooth concrete extends life. Rough surfaces and high impact use reduce it. Inspect wheels monthly for wear. Rotate wheels front-to-back and left-to-right every 500 hours if possible to extend life. Keep bearings properly sealed and avoid water pooling on storage areas. Replace seals if you observe grease leaking from bearing ends.
