Product Description

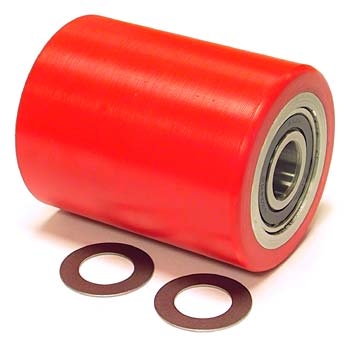

JT PT2036-3-29 is a Jet OEM load wheel assembly for manual pallet jack models PTW and ET PT2036, featuring an 80 mm diameter by 90 mm width polyurethane tread (70D) on a solid steel core, equipped with double-sealed deep groove ball bearings for a recommended 20 mm axle shaft.
Compatibility: Fits pallet jacks made by Jet, model PT2036. SKU: JT PT2036-3-29
Specifications
Material & Construction
| Wheel Tread Material | Polyurethane durometer 70D Shore hardness |
| Wheel Core Material | Solid steel |
| Finish | Machined steel with polyurethane overmold |
| Bearing Type | Double-sealed deep groove ball bearings |
Dimensions & Performance
| Wheel Diameter | 80 mm |
| Wheel Width | 90 mm |
| Recommended Axle Shaft | 20 mm |
| Service Factor | 1.15 for intermittent duty |
Part Numbers & Compatibility
| Part Number | JT PT2036-3-29 |
| Manufacturer Part Number | JTPT2036-3-29 |
| Cross-Reference Part Numbers | Equivalent to JT-PT2036-3-29-A; replaces PT2036-3-29; supersedes JT-PT2036-3-29-S |
| Compatible Equipment | Jet PTW, ET, and PT2036 manual pallet jacks |
Frequently Asked Questions
Q: What are the dimensions and material specifications for the JT PT2036-3-29 load wheel?
A: The JT PT2036-3-29 is an 80 mm diameter by 90 mm width load wheel assembly. The tread is polyurethane at 70D durometer (Shore hardness) on a solid steel core. Double-sealed deep groove ball bearings are standard. The assembly is designed for a 20 mm axle shaft. This configuration delivers durability for standard warehouse floor and material handling applications.
Q: Which pallet jacks does the JT PT2036-3-29 fit?
A: The JT PT2036-3-29 load wheel is compatible with Jet PTW and ET PT2036 series manual pallet jacks. Verify your equipment model and axle diameter is 20 mm before ordering. Wheel diameter 80 mm and width 90 mm are fixed dimensions that must match your frame assembly.
Q: What are the cross-reference part numbers for the JT PT2036-3-29?
A: The JT PT2036-3-29 is equivalent to JT-PT2036-3-29-A. It also replaces earlier part number PT2036-3-29 and supersedes JT-PT2036-3-29-S. If you have equipment using any of these numbers, the JT PT2036-3-29 is the current direct equivalent.
Q: How long does a JT PT2036-3-29 load wheel typically last?
A: Lifespan depends on load cycles, floor surface, and maintenance. Polyurethane 70D at 80 mm diameter is designed for moderate-duty warehouse use. Double-sealed bearings extend bearing life by limiting water and debris entry. Regular inspection for cracking or flat spotting on the tread indicates wear. Wheels typically serve 18 to 36 months in active warehouse service before replacement is needed.
Q: What do the double-sealed bearings on the JT PT2036-3-29 protect against?
A: Double-sealed deep groove ball bearings are designed to exclude water, salt, dust, and other contaminants from the bearing surfaces. Seals extend bearing life in wet, cold storage, and salt-laden environments common in food distribution and coastal warehouses. Seals also reduce bearing friction and noise compared to open-bearing designs.
