Product Description

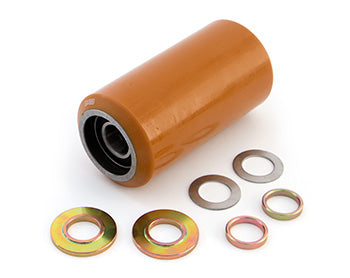

Crown load wheel assembly designed for PE 3000 series electric pallet jacks. Features polyurethane tread on cast iron core with dual sealed bearings for smooth, reliable operation in warehouse and dock environments. Direct replacement for factory-spec applications requiring durable, long-lasting wheel performance under heavy use.
The sealed bearing design eliminates routine maintenance while providing extended operational life in demanding conditions. Ideal for facilities handling frequent or high-load operations.
Specifications
Wheel Specifications
| Diameter | 3.25 inches |
| Tread Width | 6.5 inches |
| Tread Material | Polyurethane on cast iron core |
| Bearing Type | 6205-2RS sealed bearings (dual sealed, maintenance-free) |
| Bearing Bore | 25mm |
Compatibility
| Equipment Compatibility | Crown PE 3000 Series electric pallet trucks with riser assemblies (9 inch and 10 inch forks, single wheel configuration) |
Part Numbers
| Cross-Reference Part Numbers | 100461, CR100462, 100462, 10046230288, CR100462-302-88, CR10046230288 |
| Factory-Spec Part Number | Crown 100462 |
Performance
| Application Rating | Long runs and heavy loads |
| Typical Operating Lifespan | 2,000 to 3,500 operating hours (heavy-duty use) |
Frequently Asked Questions
Q: Which Crown pallet truck models use the CR 100462-A-SG wheel?
A: The CR 100462-A-SG is designed for Crown PE 3000 series electric pallet trucks. This model is specifically engineered for the PE 3000 configuration with riser. Do not use on PE 4000 or PE 4500 models without confirming bearing bore compatibility, as different series may have different wheel mounting specifications.
Q: What is the wheel diameter, width, and bearing bore?
A: The CR 100462-A-SG features a 3.25 inch diameter and 6.5 inch tread width with a 25mm bearing bore. The polyurethane tread is mounted on a cast iron core. The 25mm bore specification is critical for fitment on PE 3000 series trucks, so verify this dimension on your equipment before ordering.
Q: What bearing type is included with this assembly?
A: The CR 100462-A-SG includes 6205-2RS sealed bearings. The 2RS designation indicates sealed bearings on both sides, which excludes dirt and moisture. These sealed bearings require no routine greasing and are appropriate for dock and warehouse environments. Lifespan depends on load, frequency of use, and floor conditions.
Q: What cross-reference part numbers are available for this wheel?
A: Cross-reference numbers include 100461, CR100462, 100462, 10046230288, CR100462-302-88, and CR10046230288. The OEM part number is Crown 100462. Verify that cross-reference parts have identical 25mm bore and 6.5 inch width before substituting on your PE 3000 equipment.
Q: Is the CR 100462-A-SG rated for long runs and heavy loads?
A: Yes. The polyurethane-on-cast-iron core design with sealed 6205 bearings is rated for long runs and heavy loads. The 25mm bore provides solid bearing support for extended operation. Typical lifespan in heavy-duty applications is 2,000 to 3,500 operating hours depending on load magnitude and floor surface.
