Product Description

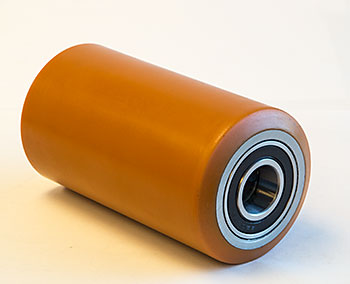

The RA 632-069-A-DS polyurethane load wheel assembly is engineered for Raymond electric pallet trucks in the 8300, 8400, and 8500 series. This direct replacement features a durable Durarun 95A polyurethane tread bonded to a machined steel core, rated for reliable performance in demanding warehouse environments.
Dual-shield deep groove ball bearings provide excellent contamination resistance, protecting against dirt and moisture intrusion for extended bearing life and minimal maintenance. The sealed bearing design makes this wheel ideal for wet, dusty, or high-traffic dock operations where standard bearings may fail prematurely.
Specifications
Material Specifications
| Tread Material | Cast polyurethane, Durarun formula |
| Core Material | Machined steel core |
Mechanical Specifications
| Polyurethane Hardness | 95A Shore Durometer |
| Bearing Specification | Type 6205 deep groove ball bearing, dual-shield sealed |
Part Numbers & Compatibility
| Part Number | RA 632-069-A-DS |
| Cross-Reference Numbers | RA632-069A, RA632069A, 632069A, 632-069-007, 632-069-107 |
| Compatible Equipment | Raymond 8300, 8400, 8500 series electric pallet trucks |
Frequently Asked Questions
Q: What is the difference between RA 632-069-A-DS and the standard RA 632-069-A?
A: Both use Durarun 95A polyurethane tread and fit Raymond 8300, 8400, and 8500 models. The -DS variant features dual-shield deep groove ball bearings instead of standard precision ball bearings, providing better contamination resistance in harsh warehouse conditions.
Q: What are the cross-reference and alternate part numbers?
A: The RA 632-069-A-DS cross-references multiple part numbers: RA632-069A, RA632069A, 632069A, 632-069-007, and 632-069-107. These are equivalent and interchangeable for Raymond 8300, 8400, and 8500 series.
Q: When should I choose dual-shield bearings over standard bearings?
A: Choose dual-shield bearings for operations in wet, dusty, or contaminated environments. The sealed design prevents dirt and moisture from entering the bearing cavity, extending bearing life and reducing maintenance downtime.
Q: Does the DS variant use the same material and durometer as the standard version?
A: Yes. Both versions use identical Durarun 95A polyurethane tread with 95A shore durometer rating and steel-reinforced cores. The only difference is the bearing type and sealing design.
