Product Description

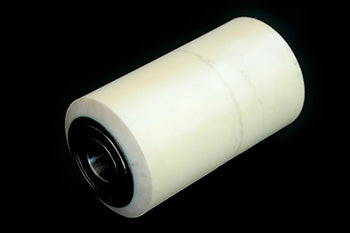

Toyota OEM load wheel assembly, part number TO 00590-00025-71-XL-A. Polyurethane 97A (XL) tread. Wheel diameter 3.25 inches, tread width 5.91 inches. Straight bore 20 mm with precision ball bearing. For electric lift trucks and pallet jacks. Cross-reference TY00590-00025-71, equivalent TO 00590-00025-71-XL.
Specifications
Material
| Wheel Tread Material | Polyurethane, 97A hardness |
| Core Material | Machined steel |
| Finish/Coating | Machined bare steel core, molded polyurethane tread |
Part Numbers
| OEM Part Number | 00590-00025-71 |
| Manufacturer Part Number | TO 00590-00025-71-XL-A |
| Cross-Reference Part Numbers | TY00590-00025-71 |
| Equivalent Part Numbers | TO 00590-00025-71-XL |
Performance
| Polyurethane Hardness | 97 Shore A |
Frequently Asked Questions
Q: What are the exact dimensions of the TO 00590-00025-71-XL-A load wheel assembly?
A: The TO 00590-00025-71-XL-A has a wheel diameter of 3.25 inches, tread width of 5.91 inches, and a straight bore of 20 millimeters. These dimensions are critical for fitment verification. Confirm all three measurements match your equipment before ordering to avoid compatibility issues.
Q: What is the tread hardness and material composition?
A: This wheel features a polyurethane tread with 97A hardness rating, providing excellent load capacity and wear resistance. The core material is machined steel with a machined bare steel finish, delivering durability and precision bore alignment for bearing installation.
Q: What equipment types and brands is this wheel compatible with?
A: The TO 00590-00025-71-XL-A is designed for electric lift trucks and pallet jacks. It is commonly used on Toyota equipment and is compatible with multiple manufacturers that use standard 3.25-inch diameter load wheels with 20 mm bore specifications.
Q: What are the cross-reference and equivalent part numbers?
A: Cross-reference part number TY00590-00025-71 is equivalent to this wheel. The equivalent part number is TO 00590-00025-71-XL. Use these references when verifying interchange compatibility or searching parts catalogs.
Q: How should I verify that this wheel will fit my equipment?
A: Check three critical specifications on your current wheel or equipment documentation: the outside diameter must be 3.25 inches, the tread width must be 5.91 inches, and the bore must accept a 20 millimeter straight bore bearing. If all three dimensions match, the wheel is compatible.
