Product Description

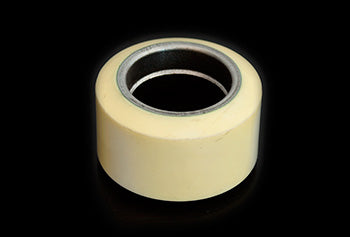

SU S627-XL Load Wheel Assembly featuring Poly XL 97A high-durability polyurethane tread, designed for electric lift truck applications. Manufactured and branded by Liftsplus.com, this wheel incorporates XL3™ chemical bonding technology for maximum heat and shear resistance. Commonly used as direct OEM replacement for electric pallet trucks and walkie stackers. Nominal dimensions 6 inches diameter x 2 inches width. Assembly features a machined steel core and pre-installed precision bearings for d
Specifications: 3.250 inch diameter x 2.000 inch width (3.250" x 2.000" | 3.25 x 2 wheel | 3-1/4 x 2 | 82.55mm x 50.80mm)
Specifications
Material
| Material Type | Polyurethane |
Part Numbers
| SKU | SU S627-XL |
| Product Name | SU S627-XL Load Wheel Assembly |
Wheel Dimensions
| Material | Cushothane XL |
| Outside Diameter | 3.25 |
| Inside Diameter | 1.938 |
| Width Side to Side | 2 |
| Bore Depth | 0.591 |
| Hub Width | 2 |
| Bore Outside Diameter | 2.0467 |
Frequently Asked Questions
Q: What is the XL3 chemical bonding technology on the SU S627-XL?
A: XL3 is a proprietary chemical bonding technology that bonds the Cushothane XL polyurethane tread directly to the machined steel core. This bond provides maximum resistance to heat and shear stress during high-cycle electric lift truck operations. XL3 bonding significantly reduces tread separation failures compared to standard mechanical adhesive methods.
Q: What are the exact dimensions of the SU S627-XL load wheel assembly?
A: The SU S627-XL has a nominal outside diameter of 3.25 inches with a width of 2 inches. The inside diameter is 1.938 inches, bore outside diameter is 2.0467 inches, bore depth is 0.591 inches, and hub width is 2 inches. Metric equivalent is approximately 82.55mm diameter x 50.80mm width. Verify these dimensions match your pallet truck hub before ordering.
Q: Does the SU S627-XL come with bearings installed?
A: Yes, the SU S627-XL assembly includes pre-installed precision bearings. No additional bearing installation is required for plug-and-play operation. The bearings are sized and pressed to match the 2-inch hub width. Do not remove bearings unless replacement is necessary; improper bearing removal or installation will damage the wheel assembly.
Q: What electric truck applications use the SU S627-XL load wheel?
A: The SU S627-XL is commonly used as a direct OEM replacement for electric pallet trucks and walkie stackers. The 97A durometer hardness and 3.25-inch diameter make it suitable for load wheels on mid-range electric equipment. Verify your specific truck model is listed in the compatible equipment database before ordering to ensure proper fitment.
Q: What is the maintenance requirement for the SU S627-XL bearing assembly?
A: The SU S627-XL bearing configuration (greaseable Z or sealed 2RS) determines maintenance needs. If marked Z, bearings should be re-greased every 6 to 12 months depending on operating intensity. If marked 2RS, bearings are sealed and do not require maintenance. Check the wheel marking or contact the supplier to confirm your bearing type and follow the appropriate maintenance schedule.
