Product Description

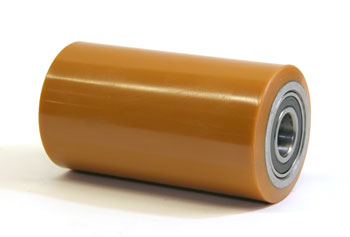

Raymond load wheel assembly featuring a 3.25-inch polyurethane tread with Shore A 95 durometer and cast iron core. Pre-installed with a 6205-series ball bearing, this direct replacement assembly is ready for immediate mounting on compatible Raymond electric pallet trucks. Designed for reliable performance in standard indoor warehouse operations, with cross-reference compatibility across multiple Raymond model families.
Specifications
Compatibility
| Truck Model Compatibility | Fits Raymond 115 electric pallet jack |
| Applicable Model Families | Compatible with Raymond 111, 112, 113, 114, 115 electric pallet truck series |
Material & Construction
| Tread Material | Polyurethane, Shore A 95 |
| Core Material | Cast Iron |
| Bearing Type | 6205-series ball bearing |
| Tread Width | 5.91 inch |
| Wheel Diameter | 3.25 inch |
Part Numbers
| Manufacturer Part Number | RA 632-014-001 |
| Cross-Reference Part Numbers | Replaces 632-014-002, 632-014-003, 632-069-001, 850-135-180-003, equivalent to Crown 310178-001 |
| Supersedes/Replaces | Supersedes 632-014-002, 632-014-003 |
Frequently Asked Questions
Q: What are the dimensions of the RA 632-014-001 load wheel?
A: The RA 632-014-001 has a 3.25 inch wheel diameter and 5.91 inch tread width. The bearing bore is sized for a 6205-series ball bearing. Verify these dimensions match your truck assembly before ordering.
Q: What bearing type does the RA 632-014-001 use?
A: The RA 632-014-001 is fitted with a 6205-series radial ball bearing. This is a standard deep groove bearing used across multiple equipment manufacturers. The bearing is press-fit into the cast iron core and pre-lubricated at the factory.
Q: Is the RA 632-014-001 a direct replacement for Crown 310178-001?
A: Yes. The RA 632-014-001 is cross-referenced with Crown 310178-001 and is dimensionally equivalent. However, verify the truck model and mounting interface before assuming direct interchange. Some equipment may have different hub configurations.
Q: What other part numbers does the RA 632-014-001 replace?
A: The RA 632-014-001 replaces 632-014-002 and 632-014-003, and is equivalent to 632-069-001 and 850-135-180-003. Check your original part documentation to confirm which reference applies to your truck before ordering.
Q: What polyurethane compound is used on the RA 632-014-001?
A: The RA 632-014-001 features a Shore A 95 polyurethane tread bonded to the cast iron core. This durometer provides a balance of load capacity and traction for standard indoor warehouse operations.
Q: Does the RA 632-014-001 come pre-assembled and ready to mount?
A: Yes. The RA 632-014-001 arrives as a complete assembly with the bearing pre-installed and the tread bonded to the core. The assembly is ready for mounting to your pallet jack frame.
