Product Description

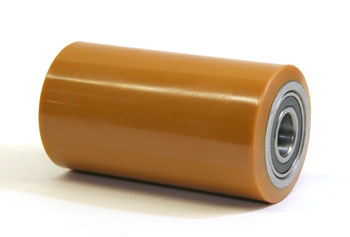

Raymond RA 632-014-003 load wheel assembly features a 3.25-inch polyurethane tread, 5.91-inch overall width, and precision 25 mm bore, with four 6205 deep groove ball bearings. Engineered for compatibility with select Raymond electric lift trucks, the assembly is constructed with a precision-machined steel core and molded non-marking polyurethane tread of 95A durometer. OEM, superseded, and cross-reference part numbers are included for interchange validation.
Specifications
Material & Construction
| Core Material | Precision-machined steel |
| Tread Material | Non-marking polyurethane |
| Tread Durometer | 95A |
| Wheel Diameter | 3.25 inches |
| Overall Width | 5.91 inches |
| Bore Size | 25 mm |
| Bearing Type | 6205 deep groove ball bearings (qty. 4) |
Part Numbers
| Manufacturer Part Number | RA 632-014-003 |
| Direct Replacement Part Number | 632-014-003 |
| Cross-Reference Part Numbers | Equivalent to 632-014-001, 632-014-002, 632-069-001, 850-135-180-003 |
| Superseded Part Numbers | Supersedes 632-014-001, 632-014-002 |
Frequently Asked Questions
Q: What are the key dimensions and bearing specifications of the RA 632-014-003?
A: The RA 632-014-003 has a 3.25 inch wheel diameter, 5.91 inch overall width, and a precision 25 mm bore. It is fitted with four 6205 deep groove radial ball bearings press-fit into the precision-machined steel core.
Q: Why does the RA 632-014-003 have four bearings instead of one or two?
A: The four 6205 deep groove ball bearings are arranged to provide redundancy, load sharing, and reduced wear on each bearing under heavy loads. This configuration extends bearing life and improves wheel stability in Raymond electric lift trucks rated for high-capacity operations.
Q: Is the RA 632-014-003 equivalent to RA 632-014-001 or RA 632-014-002?
A: The RA 632-014-003 is equivalent to both 632-014-001 and 632-014-002 but is not identical. It supersedes both older variants and has a different bearing configuration (four bearings versus one). The 003 is the current production standard for this assembly. Use the 003 unless your equipment documentation specifies an older variant.
Q: What is the tread material and durometer of the RA 632-014-003?
A: The RA 632-014-003 uses a molded, non-marking polyurethane tread with 95A durometer bonded to the precision-machined steel core. Non-marking means it will not leave black marks on floors, making it ideal for food processing, pharmaceuticals, and other sensitive environments.
Q: What is the 25 mm bore specification on the RA 632-014-003?
A: The 25 mm bore is the axle hole diameter. This is a precision specification that must match your truck assembly hub or axle shaft. Verify the hub diameter on your equipment before ordering to ensure proper fit.
Q: Is the RA 632-014-003 suitable for outdoor or wet storage applications?
A: The standard 95A polyurethane tread performs adequately indoors and in light moisture. For wet, outdoor, or cold storage below 40°F, the non-marking polyurethane may lose traction. For those environments, request a high-traction compound variant designed for wet or cold floors.
