Load Wheel Assembly for Raymond C20-33 35L
RA 632-015-003
Guaranteed Fit. If it doesn’t fit equipment that matches the listing on this page, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Check it with us before you buy. Once we confirm the fit in writing, it’s guaranteed for your machine.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

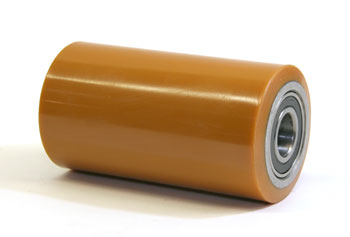

Raymond Load Wheel Assembly — precision-engineered load wheel for Raymond electric reach trucks. Features a polyurethane wheel and machined steel hub for reliable performance in demanding warehouse environments. Direct replacement for Raymond C20-33 35L reach truck models, delivering smooth rolling and stable load handling across concrete floors. Fully assembled and ready for service.
Specifications
Material & Construction
| Material | Polyurethane |
Part Numbers & Compatibility
| Make | Raymond |
| Model | C20-33 35L |
| Manufacturer Part Number | RA 632-015-003 |
| Cross-Reference Part Numbers | Replaces RA 632-015-001, supersedes RA 632-015-002, equivalent to PAL-13M, STDBA MO106A |
| Compatible Equipment | Raymond reach truck C20-33 35L (serial series P232L-0956) |
Additional Specifications
| Hub Material | Machined steel |
| Service Type | Heavy-duty service |
Wheel Dimensions
| Outside Diameter | 6.0 in |
| Width | 3.25 in |
Frequently Asked Questions
Q: What equipment is the RA 632-015-003 designed for?
A: The RA 632-015-003 is a load wheel assembly designed for Raymond electric reach truck model C20-33 35L. Always verify your truck model before ordering to ensure proper fit.
Q: What part numbers cross-reference the RA 632-015-003?
A: The RA 632-015-003 replaces RA 632-015-001, supersedes RA 632-015-002, and is equivalent to cross-reference numbers PAL-13M and Stdba MO106A. Check your equipment documentation if you currently use one of these alternate part numbers.
Q: What material is the RA 632-015-003 made from?
A: The RA 632-015-003 is constructed from polyurethane, providing durability and reliable traction in warehouse environments.
Q: Which Raymond electric reach truck models does the RA 632-015-003 fit?
A: The RA 632-015-003 is designed for Raymond reach truck model C20-33 35L. Verify that your truck model matches this specification before ordering to ensure compatibility.
Q: Is the RA 632-015-003 delivered as a complete assembly?
A: Yes, the RA 632-015-003 is fully assembled with a polyurethane tread and machined steel hub as a ready-to-use load wheel assembly.
Q: What should I verify before ordering a replacement RA 632-015-003?
A: Verify that your equipment is a Raymond C20-33 35L electric reach truck and check whether RA 632-015-001, RA 632-015-002, PAL-13M, or Stdba MO106A appears in your equipment documentation as an alternate part number.
