Product Description

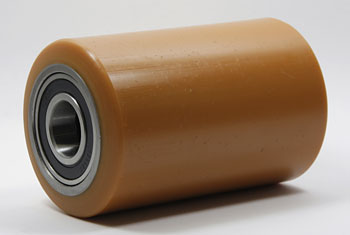

Raymond RA 632-016-007-A load wheel assembly featuring 3.25 inch diameter by 5 inch wide polyurethane tread on cast iron hub with pre-installed 6205-2RS sealed bearings, 25mm bore, 95A durometer rating, designed for Raymond 101 Series pallet trucks.
Specifications
Material & Construction
| Wheel Core Material | Cast iron hub assembly |
| Tread Material | Polyurethane elastomer compound |
| Tread Hardness | 95 Shore A durometer |
Mechanical Specifications
| Wheel Diameter | 3.25 inches |
| Wheel Width | 5 inches |
| Bore Size | 25mm |
| Bearing Type | 6205-2RS dual rubber sealed deep groove ball bearing |
| Durometer Rating | 95A |
Part Numbers & Compatibility
| Part Number | 632-016-007 |
| Cross-Reference Part Number | Supersedes 632-016/007, equivalent to SK-14250212SR |
| Compatible Equipment | Raymond 101 Series pallet trucks |
Frequently Asked Questions
Q: What bearing type is pre-installed on the 632-016-007-A assembly?
A: The assembly comes pre-installed with 6205-2RS sealed deep groove ball bearings. The bearing bore is 25mm. The RS designation indicates dual rubber seals for contamination protection in warehouse environments.
Q: What are the dimensions and durometer rating of the 632-016-007-A?
A: The load wheel features 3.25 inch outer diameter, 5 inch tread width, and a 95A durometer polyurethane tread. The 25mm bore accommodates standard pallet jack axles.
Q: Which Raymond pallet truck models is this load wheel assembly compatible with?
A: The 632-016-007-A is designed for Raymond 101 Series pallet trucks. Cross-reference part number SK-14250212SR is equivalent. Verify your truck specifications before ordering.
Q: What hub material does the 632-016-007-A use?
A: The hub is cast iron. This material provides durability and strength while supporting the sealed bearing assembly and polyurethane tread in dock and warehouse applications.
Q: How does this wheel compare to the earlier 632-016/007 model?
A: The 632-016-007-A supersedes 632-016/007. The -A designation indicates an improved assembly that includes pre-installed sealed 6205-2RS bearings and a reinforced cast iron hub design.
Q: Are the sealed bearings on this assembly serviceable?
A: The 6205-2RS bearings are sealed units designed to minimize maintenance requirements. The dual rubber seals protect against dirt and moisture. Consult maintenance documentation for bearing inspection intervals.
Q: Can this wheel assembly be used as a replacement part?
A: Yes, the 632-016-007-A is a direct replacement for the earlier 632-016/007 assembly and is a cross-reference equivalent to SK-14250212SR, making it a suitable substitute for Raymond 101 Series pallet trucks.
