Raymond Load Wheel Assembly for Electric Pallet Trucks
RA 632-016-A
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Reference Diagrams
Visit our diagram page for part references to popular models
Product Description

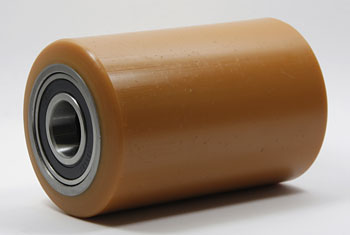

Raymond RA 632-016-A Load Wheel Assembly is a direct replacement for Raymond 101 series electric pallet trucks. Features a polyurethane tire with 95A durometer hardness bonded to a cast iron hub, paired with sealed 6205-2RS ball bearings for durability and low maintenance. Built for reliable, long-lasting operation in demanding conditions.
Specifications
Material
| Tread Material | Premium 95A durometer polyurethane |
| Wheel Core Material | Cast iron |
Bearing Assembly
| Bearing Type | Sealed 6205-2RS deep groove ball bearings |
Part Number Reference
| Part Number | RA 632-016-A |
| Manufacturer Part Number | 632-016 |
| Cross-Reference Numbers | Raymond 632-016 |
| Compatible Equipment | Raymond 101 Series electric pallet trucks |
Performance
| Durometer Hardness | 95 Shore A |
Frequently Asked Questions
Q: What are the dimensions of the RA 632-016-A load wheel assembly?
A: The RA 632-016-A features . It provides optimal load distribution and maneuverability on Raymond 101 series electric pallet trucks.
Q: What bearing type comes with the RA 632-016-A?
A: The assembly includes sealed 6205-2RS deep groove ball bearings. These dual-sealed bearings minimize maintenance requirements and protect against contamination in material handling environments.
Q: What is the tread material and hardness?
A: The RA 632-016-A features premium 95A durometer polyurethane tread bonded to a cast iron hub. This hardness rating provides balanced wear resistance and load capacity for standard material handling applications.
Q: Which Raymond equipment is this wheel assembly compatible with?
A: The RA 632-016-A is designed as a direct replacement for Raymond 101 Series electric pallet trucks. Reference the part number 632-016 to verify compatibility with your specific truck model.
Q: What is the core material of the wheel?
A: The wheel hub is constructed from cast iron, providing durability and structural support for the sealed bearing assembly and polyurethane tread.
Q: What part numbers should I use when ordering?
A: The full part number is RA 632-016-A. The manufacturer part number is 632-016. Cross-reference Raymond 632-016 for compatibility verification.
Q: How does the sealed bearing design benefit performance?
A: Sealed 6205-2RS bearings reduce friction, extend wheel life, and minimize maintenance by protecting against dust and moisture intrusion in warehouse and loading dock environments.
