Product Description

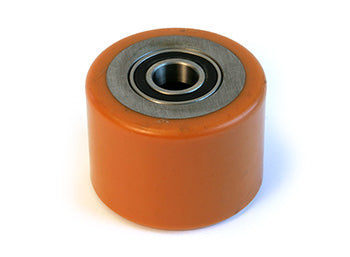

Raymond RA 632-030-003-A Load Wheel Assembly engineered for electric lift trucks. Features proprietary 3.25 inch diameter smooth profile polyurethane-treaded wheel on cast iron core, 95 Shore A hardness, and 6205-2RS sealed precision ball bearings, suitable for demanding electric pallet truck and reach truck applications in the 7300/7400/7500/7600 Series. No direct cross-reference part numbers provided. Built and tested to Raymond equipment standards for durability and lasting performance.
Specifications
Compatibility
| Compatible Equipment Series | Raymond 7300, 7400, 7500, 7600 Series Reach Trucks (select configurations; confirm with truck serial number) |
Material & Construction
| Core Material | Cast iron |
| Tread Material | 95A domestic polyurethane |
| Tread Hardness | 95 Shore A |
| Bearing Type | 6205-2RS sealed precision ball bearings |
Dimensions & Performance
| Wheel Diameter | 3.25 inches |
| Tread Profile | Smooth profile |
Part Information
| Manufacturer Part Number | RA 632-030-003-A |
| Application | Electric pallet truck and reach truck applications in the 7300/7400/7500/7600 Series |
| Quality Standards | Built and tested to Raymond equipment standards for durability and lasting performance |
Frequently Asked Questions
Q: What Raymond equipment series does the RA 632-030-003-A fit?
A: The RA 632-030-003-A is engineered for Raymond 7300, 7400, 7500, and 7600 Series reach trucks in select configurations. Always confirm compatibility with your truck serial number and model specification before ordering, as configuration variations within each series may affect fitment.
Q: What are the physical dimensions of the RA 632-030-003-A wheel?
A: The RA 632-030-003-A has a 3.25-inch diameter with a smooth profile polyurethane tread surface. The specific width and bore dimensions vary by configuration; refer to the product specification sheet to verify dimensions match your reach trucks load wheel mounting points.
Q: What bearing type is used in the RA 632-030-003-A assembly?
A: The RA 632-030-003-A features 6205-2RS sealed precision ball bearings. The 2RS designation indicates the bearings are sealed on both sides to protect against contamination and moisture, essential for warehouse environments where dirt, water, and dust can degrade bearing performance.
Q: What does the cast iron core provide in the RA 632-030-003-A?
A: The cast iron core provides superior load-bearing capacity and structural durability in demanding electric pallet truck and reach truck applications. Cast iron resists deformation under continuous heavy loading and offers excellent dimensional stability compared to lighter core materials.
Q: What hardness rating does the polyurethane tread have on the RA 632-030-003-A?
A: The RA 632-030-003-A features 95 Shore A hardness domestic polyurethane tread. This formulation is optimized for Raymond equipment performance, providing the balance of traction, wear resistance, and load handling needed in high-demand pallet truck and reach truck service.
Q: Are there cross-reference part numbers for the RA 632-030-003-A?
A: No direct cross-reference part numbers are available for the RA 632-030-003-A. This is a Raymond OEM load wheel assembly built to exact equipment specifications. Contact us with your equipment serial number and we can verify availability and compatibility.
