Product Description

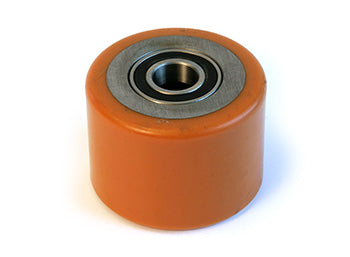

Raymond RA 632-030-004-A is a replacement polyurethane load wheel assembly for Raymond electric pallet jack trucks, featuring a 3.25 inch outer diameter, 2.88 inch width, 1.85 inch bore, 95A Durometer tread, and precision 6205-2RS ball bearings. Designed for optimal load distribution and durability in electric lift truck applications.
Specifications
Material & Construction
| Tread Material | Polyurethane, 95A hardness |
| Core Material | Cast iron |
| Tread Hardness | 95 Shore A |
| Finish | Machined surface with polyurethane tread |
Part Numbers
| OEM Part Number | RA 632-030-004-A |
| Manufacturer Part Number | RA 632-030-004-A |
Frequently Asked Questions
Q: What equipment does the RA 632-030-004-A load wheel fit?
A: The RA 632-030-004-A is a replacement polyurethane load wheel assembly designed for Raymond electric pallet jack trucks and reach trucks. This is an OEM part for Raymond applications. Verify that your equipment uses a 1.85 inch bore and 3.25 inch outer diameter before ordering.
Q: What are the dimensions and specifications for RA 632-030-004-A?
A: Outer diameter is 3.25 inches, tread width is 2.88 inches, and bore diameter is 1.85 inches. The wheel features a 95A Shore A durometer polyurethane tread over a cast iron core with precision 6205-2RS ball bearings. Surface is machined to provide consistent bearing fit and load distribution.
Q: What material is the RA 632-030-004-A wheel made from?
A: The tread is polyurethane compound at 95A hardness, which provides abrasion resistance and load-carrying capacity. The core is cast iron, offering strength and stability. The 6205-2RS bearing is a sealed ball bearing, protecting against contamination in warehouse environments.
Q: How do I know if RA 632-030-004-A is the correct replacement for my Raymond equipment?
A: Match three critical dimensions: bore diameter (1.85 inches), outer diameter (3.25 inches), and tread width (2.88 inches). Your existing wheel or equipment documentation must confirm these measurements. If dimensions do not match exactly, the wheel will not fit or operate correctly.
Q: What is the typical service life of the RA 632-030-004-A wheel?
A: Service life depends on load cycles, floor conditions, and maintenance. The 95A durometer polyurethane tread and sealed bearing design are rated for high-cycle warehouse operations. Regular inspection for wear on the tread and bearing noise will indicate when replacement is needed. Sealed bearings reduce contamination and extend service intervals.
Q: Are there cross-reference or equivalent part numbers for RA 632-030-004-A?
A: RA 632-030-004-A is the OEM Raymond part number. No verified cross-reference or supersession numbers are currently available. Always order using the exact OEM part number RA 632-030-004-A to ensure compatibility and quality.
