Product Description

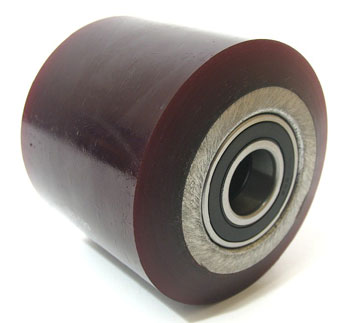

RA 632-032-002-A is a Raymond OEM load wheel assembly engineered for electric reach trucks, featuring a 4-inch diameter by 3.62-inch wide Millennium Standard 92A polyurethane tread on machined steel core, with 6205 sealed deep groove ball bearing and standard mounting bolt pattern for compatibility with Raymond 7200–7600 Series units.
Specifications
Material
| Core Material | Machined steel, ASTM A36 |
| Tread Material | Millennium Standard 92A polyurethane |
| Bearing Type | 6205 sealed deep groove ball bearing |
| Mounting Bolt Pattern | Standard Raymond |
Part Numbers
| Part Number | RA 632-032-002-A |
| Manufacturer Part Number | RA632-032/002 |
| Cross-Reference Part Numbers | Replaces RA 632-032, supersedes RA 632-032-A, equivalent to RA 632-032/002 |
| Compatible Equipment Models | Raymond 7200, 7300, 7400, 7500, 7600 Series Reach-Fork Truck, RRS and RSS Walkie Reach Truck |
Frequently Asked Questions
Q: What are the key specifications for the RA 632-032-002-A load wheel assembly?
A: The wheel uses Millennium Standard 92A polyurethane compound cast on a machined steel ASTM A36 core. It is equipped with a sealed 6205 deep groove ball bearing and uses the standard Raymond mounting bolt pattern for easy installation on compatible equipment.
Q: Which Raymond reach truck models are compatible with the RA 632-032-002-A?
A: This load wheel assembly is engineered for Raymond 7200, 7300, 7400, 7500, and 7600 Series Reach-Fork trucks. It also fits Raymond RRS and RSS Walkie Reach Truck models. Always verify your truck's serial number against the compatible model range before ordering to ensure proper fit.
Q: What do the cross-reference and supersession numbers mean for this part?
A: The part number is RA 632-032-002-A with manufacturer designation RA632-032/002. This part replaces the older RA 632-032 and RA 632-032-A models and is equivalent to Raymond RA 632-032/002 load wheel assemblies. It is a direct replacement for those legacy part numbers.
Q: What are the characteristics of 92A Millennium Standard polyurethane?
A: The 92A durometer rating indicates moderate hardness suitable for general warehouse and reach applications on typical concrete floors. This compound provides good traction on dry surfaces and standard load capacity for electric reach trucks. It is softer than 95A or 98A compounds, which may be preferred in specialized environments.
Q: Why is the 6205 sealed bearing important in this load wheel assembly?
A: The sealed 6205 deep groove ball bearing protects internal components from dust and moisture, reducing maintenance requirements compared to open bearing designs. The sealed design extends bearing life and improves reliability in typical warehouse environments. The bearing is press-fit into the machined steel hub for secure mounting.
Q: How should I store the RA 632-032-002-A when not in use?
A: Store the load wheel assembly in a clean, dry environment away from extreme temperatures and humidity. Keep it protected from direct sunlight and moisture to preserve the polyurethane tread and sealed bearing condition. Store vertically or horizontally on a flat surface to prevent deformation of the tread.
