Product Description

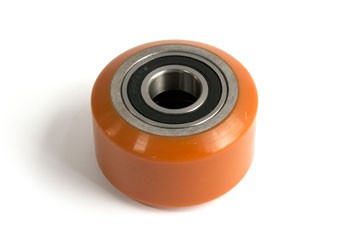

Raymond RA 632-076-004-A is a precision load wheel assembly designed for electric pallet trucks. This direct replacement part features a high-performance polyurethane wheel with pre-installed steel bearing for reliable, consistent performance across Raymond 8300, 8400, and 8500 series equipment. Built to exact factory specifications for durability and compatibility.
Specifications
Wheel Specifications
| Outer Diameter | 3.25 inches |
| Width | 2.0 inches |
| Wheel Material | High-performance polyurethane (95A Durarun tread) |
| Tread Hardness | 95A Shore hardness |
| Core Material | Cast iron |
| Bearing Type | 6205 steel ball bearing |
| Bearing Material | Precision steel bearing, grade SAE 52100 |
Part Numbers & Compatibility
| Part Number | RA 632-076-004-A |
| Cross-Reference Part Numbers | Replaces RA 632-076-A, RA 632-076-004; equivalent to RA 632-076-003 |
| Compatible Equipment | Raymond 8300, 8400, 8500 electric pallet trucks |
Frequently Asked Questions
Q: What makes RA 632-076-004-A different from RA 632-076-004?
A: The RA 632-076-004-A is a load wheel assembly variant that includes the precision-machined polyurethane wheel with a 6205 steel ball bearing pre-installed. Both part numbers are cross-referenced and use the same 95A Durarun tread, but the -004-A comes as a complete assembly.
Q: Is the RA 632-076-004-A compatible with Raymond 8300, 8400, and 8500 series trucks?
A: Yes. The RA 632-076-004-A is a direct replacement for Raymond electric pallet truck models 8300, 8400, and 8500 series. Confirm your equipment model and serial range to ensure fitment before ordering.
Q: What bearing size does the RA 632-076-004-A assembly use?
A: The RA 632-076-004-A assembly includes a 6205 steel ball bearing. This bearing size is standard for most Raymond electric pallet trucks in the 8300-8500 series range.
Q: Can I use RA 632-076-004-A to replace RA 632-076-A or RA 632-076-004?
A: Yes. The RA 632-076-004-A is cross-referenced with both RA 632-076-A and RA 632-076-004, and is also equivalent to RA 632-076-003. These part numbers can be used interchangeably for direct replacement.
Q: What dimensions and bearing specifications should I verify for fitment?
A: The RA 632-076-004-A has a 3.25 inch outer diameter with a 2.0 inch width and uses a 6205 bearing. Verify these dimensions match your equipment before ordering to avoid fitment issues.
