Raymond Load Wheel Assembly for Forklifts
RA 928-603-A
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Reference Diagrams
Visit our diagram page for part references to popular models
Product Description

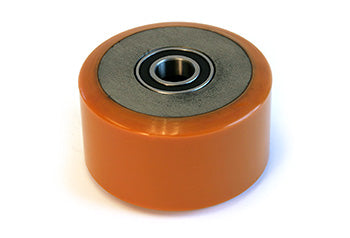

The Raymond RA 928-603-A is a polyurethane load wheel assembly engineered for electric pallet trucks and material handling equipment. This complete wheel assembly features a precision 6205 series ball bearing, abrasion-resistant polyurethane tread rated at Shore A 95 durometer hardness, and a high-strength cast iron core for superior load-bearing capacity and durability. Designed for single wheel configurations on Raymond electric lift trucks, the RA 928-603-A delivers reliable performance in warehouse and distribution center environments.
Specifications
Wheel Specifications
| Material Type | Polyurethane |
| Material Durometer | Shore A 95 (±2 tolerance) |
| Core Material | High-strength cast iron hub |
| Bearing Type | Precision ball bearing (6205 series) |
| Tread Features | Abrasion-resistant, bonded to cast iron core |
Part Numbers
| Part Number | RA 928-603-A |
| Manufacturer Part Number | RA 928-603 |
| Cross Reference Part Numbers | RA 928-603, RA 928-603-XL; supersedes RA 928-603-EZ-MIL |
Application
| Suitable For | Single wheel configurations on Raymond electric pallet trucks and lift trucks |
| Equipment Type | Electric Pallet Trucks |
Frequently Asked Questions
Q: What is the wheel diameter of the 928-603-A load wheel assembly?
A: The wheel features a polyurethane tread bonded to a high-strength cast iron core, providing durable performance in warehouse environments.
Q: Is the 928-603-A compatible with Raymond electric lift trucks?
A: Yes, the 928-603-A is designed for Raymond electric pallet trucks and is equivalent to part 928-603. Confirm bore size and mounting configuration match your specific equipment model before installation.
Q: What is the hardness rating of the polyurethane tread?
A: The polyurethane tread is rated at Shore A 95 durometer hardness with a tolerance of ±2. This specification provides balanced abrasion resistance and load capacity for material handling applications.
Q: What bearing type is included in this assembly?
A: The 928-603-A includes a precision ball bearing from the 6205 series. This sealed bearing design maintains smooth rotation and reduces maintenance in typical warehouse environments.
Q: What is the core material of the wheel?
A: The core is constructed from high-strength cast iron. The cast iron hub provides rigidity, load-bearing capacity, and durability. The abrasion-resistant polyurethane tread is bonded directly to this core.
Q: How should this wheel assembly be stored?
A: Store the wheel assembly in a clean, dry environment away from direct sunlight, extreme heat, and corrosive chemicals. Keep wheels in an upright position when not in use to maintain shape and prevent flat-spotting.
Q: What makes this a direct replacement wheel assembly?
A: The 928-603-A is manufactured to factory specifications matching original Raymond equipment compatibility. The precision 6205 bearing, polyurethane tread bonded to cast iron core, and wheel diameter ensure reliable fit and performance on compatible Raymond electric pallet trucks.
