Product Description

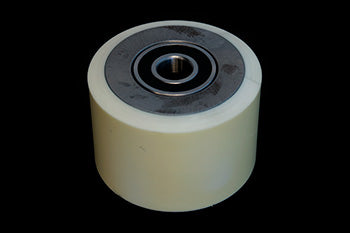

The SU S654-XL-A Poly Load Wheel Assembly is designed for durability and efficiency, featuring a robust construction ideal for electric pallet jacks and electric lift trucks. This assembly combines a high-performance polyurethane tread with a sturdy machined steel core.
Specifications: 5.000 inch diameter x 3.625 inch width (5.000" x 3.625" | 5 x 3.63 wheel | 5 x 3.625 | 127.00mm x 92.07mm) | Bearing ID: 25mm (0.984 inch bore | 25.000mm ID)
• XL polyurethane 97A durometer tread for superior grip and wear resistance
• Machined steel core for enhanced strength and stability
• Complete with bearing for easy installation and operation
This load wheel assembly is specifically engineered for compatibility with electric pallet jacks and lift trucks, ensuring optimal performance in material handling applications.
Specifications
Material
| Core Material | Machined steel core |
| Wheel Construction | Polyurethane bonded to steel core |
Part Numbers
| OEM Part Number | SU S654-XL-A |
| Manufacturer Part Number | SU S654-XL-A |
Wheel Dimensions
| Material | Cushothane XL |
| Outside Diameter | 5 |
| Inside Diameter | 2.188 |
| Width Side to Side | 3.625 |
| Tread Profile | 3/8 Radius |
| Bore Depth | 0.67 |
| Bore Outside Diameter | 2.4384 |
Frequently Asked Questions
Q: What is the bearing ID on the SU S654-XL-A wheel assembly?
A: SU S654-XL-A has a bearing ID of 25mm (0.984 inch bore, 25.000mm ID). This is a critical specification for compatibility. If your electric lift truck requires a different bearing size (such as 2.188 inches or 5/8 inch), the SU S654-XL-A will not fit. Always verify your trucks bearing specification before ordering.
Q: How does the SU S654-XL-A differ from the SU S654-XL?
A: Both are 5x3.625 Poly XL 97A wheels, but SU S654-XL-A is a complete assembly with a machined steel core and a 25mm bearing ID. SU S654-XL is a wheel with a steel hub without a specified bearing ID. If you need the 25mm bearing specification, order SU S654-XL-A. If your truck uses a different bearing size, verify compatibility before purchase.
Q: Is the SU S654-XL-A wheel bonded or can it be replaced separately from the steel core?
A: The SU S654-XL-A has polyurethane bonded to a machined steel core. This is a permanent assembly; the wheel and core cannot be separated. If the wheel tread is damaged, you must replace the entire SU S654-XL-A assembly. The machined steel core ensures precision concentricity and long-term durability.
Q: What surfaces can I use the SU S654-XL-A wheel on without damage?
A: SU S654-XL-A Poly XL 97A is rated for concrete, asphalt, and indoor warehouse floors. The material resists cuts from nails, sharp debris, and rough concrete. However, extended outdoor use in extreme weather, oily surfaces, or chemical exposure can degrade polyurethane. Avoid standing water accumulation around wheels. If your application involves special surfaces, consult the manufacturer for material compatibility.
Q: How do I verify that SU S654-XL-A will fit my electric lift truck?
A: To verify fitment: (1) Identify your truck model number from the nameplate. (2) Consult your OEM manual for load wheel specifications, bearing ID, and hub dimensions. (3) Compare your truck requirements to the SU S654-XL-A 25mm bearing ID, 5 inch diameter, and 3.625 inch width. (4) If all specifications match, the wheel will fit. When in doubt, contact the manufacturer with your truck model number before ordering.
Q: Can worn SU S654-XL-A wheels be reconditioned or refurbished?
A: No. SU S654-XL-A is a bonded assembly that cannot be reconditioned. Once the polyurethane tread is worn, damaged, or flat-spotted, the assembly must be replaced. Do not attempt to re-tread or repair the wheel. Replace with a new SU S654-XL-A assembly to ensure safe operation and proper bearing performance.
