Load Wheel Assembly for Electric Pallet Jack
SU S9160-A
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
- |
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description

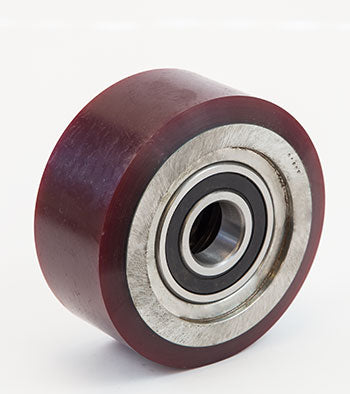

Polyurethane load wheel assembly SU S9160-XL for electric pallet jacks, features 5.00 inch diameter, 2.88 inch tread width, 2.44 inch bore, shoulder bearing, and 97A hardness, engineered for dock board and heavy-duty warehouse environments.
Specifications: 6.000 inch diameter x 2.880 inch width (6.000" x 2.880" | 6 x 2.88 wheel | 6 x 2-7/8 | 152.40mm x 73.15mm)
Specifications
Material
| Core Material | Steel, machined finish |
Part Numbers
| Manufacturer Part Number | SU S9160-XL |
| OEM Part Number | SU S9160-XL |
Wheel Dimensions
| Material | Cushothane XL |
| Outside Diameter | 6 |
| Inside Diameter | 2.947 |
| Width Side to Side | 2.88 |
| Tread Profile | 3/8 Radius |
| Bore Depth | 0.827 |
| Bore Outside Diameter | 3.1471 |
Frequently Asked Questions
Q: What is the difference between SU S9160-A and SU S9160-XL?
A: The SU S9160-A is a load wheel assembly with a steel machined-finish core. The SU S9160-XL is the same wheel type. Both feature Cushothane XL material and are engineered for electric pallet jacks and stackers. Verify your equipment OEM requirement before selecting.
Q: Does the SU S9160-A come with a bearing assembly installed?
A: The SU S9160-A includes a shoulder bearing specification. Confirm whether your equipment requires a preinstalled bearing or a separate bearing kit. Contact your distributor or equipment OEM to determine the complete assembly configuration needed.
Q: What hardness rating does the SU S9160-A provide?
A: The SU S9160-A features 97A hardness, which provides excellent wear resistance and grip on dock boards and concrete warehouse floors. This hardness balances load capacity with traction for heavy-duty continuous-duty cycles.
Q: Can the SU S9160-A be used as a direct replacement on any pallet jack?
A: No. The SU S9160-A must match the exact wheel bore, diameter, and width specification of your equipment. Verify your current wheel measurements against the SU S9160-A specifications. Incorrect installation can damage the axle or cause equipment failure.
Q: What environments is the SU S9160-A suitable for?
A: The SU S9160-A is engineered for dock board and heavy-duty warehouse environments. For wet floor or cold storage service, consult with your distributor to confirm whether the standard 97A compound or a specialized high-traction variant is required.
Q: What tools are required to install the SU S9160-A?
A: Standard tools include socket wrench set, torque wrench, and jack stands. Remove the equipment from service before changing wheels. Unbolt the existing wheel, slide the new SU S9160-A onto the axle, and torque fasteners to the equipment manufacturer specification. Do not exceed recommended torque values.
