Product Description

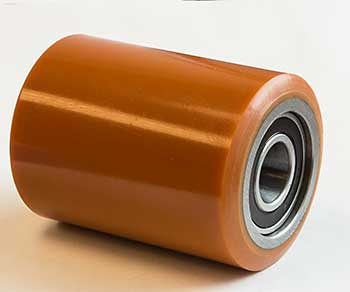

The GW 806-A Load Wheel Assembly is designed for durability and efficiency in material handling applications. Featuring sealed bearings and a robust construction, this assembly is ideal for use with electric pallet jacks and walkie trucks.
Specifications: 3.250 inch diameter x 4.500 inch width (3.250" x 4.500" | 3.25 x 4.5 wheel | 3-1/4 x 4-1/2 | 82.55mm x 114.30mm) | Bearing ID: 25mm (0.984 inch bore | 25.000mm ID)
• Made with a polyurethane 95A durometer tread for excellent traction and wear resistance
• Steel core construction ensures strength and stability under heavy loads
• Direct OEM replacement, interchangeable with NI 40350-SW000 for seamless integration
This load wheel assembly is compatible with various electric pallet jacks and walkie trucks, making it a versatile choice for your material handling needs.
Specifications
Material
| Core Material | Machined steel core |
Part Numbers
| OEM Part Number | GW 806-A |
| Manufacturer Part Number | GW 806-A |
| Cross-Reference Part Numbers | NI 40350-SW000 |
| Equivalent Part Numbers | 95A Poly Load Wheel Assembly |
Wheel Dimensions
| Outside Diameter | 3.25 |
| Width Side to Side | 4.5 |
Frequently Asked Questions
Q: What bearing size does the GW 806-A load wheel assembly use?
A: The GW 806-A has a 25mm bore (0.984 inch) bearing ID, which is larger than the 17mm bearing on equivalent models like GW 806-A1 and GW 806-A2. Verify your original wheel bearing size before ordering to ensure proper fit on your pallet jack axle.
Q: Is the GW 806-A equivalent to NI 40350-SW000?
A: Yes, the GW 806-A is cross-referenced to NI 40350-SW000. Both parts are 95A polyurethane load wheel assemblies with 3.250 inch diameter and 4.500 inch width. Always verify the bearing ID (25mm on the GW 806-A) matches your equipment before substituting.
Q: What is the wheel material and durometer rating on the GW 806-A?
A: The GW 806-A features polyurethane 95A durometer tread bonded to a machined steel core. The 95A Shore A hardness provides excellent traction and wear resistance for typical pallet jack and walkie truck applications on smooth to moderately textured warehouse floors.
Q: How do I install the GW 806-A wheel assembly on my electric pallet jack?
A: The GW 806-A installs directly onto your existing axle. Slide the wheel assembly onto the 25mm diameter axle shaft until the bearing bore seats fully. No modification is required. Ensure the sealed bearing spins freely and the wheel does not wobble on the axle before operating the jack under load.
Q: When should I replace the GW 806-A wheel assembly?
A: Replace the wheel assembly if you observe flat spotting, chunks missing from the tread, bearing noise or rough rotation, visible cracks in the core, or reduced traction on wet floors. Sealed bearings on the GW 806-A typically last 2000+ operating hours with normal maintenance. Inspect wheels quarterly if the jack operates 40+ hours per week.
Q: What load capacity is the GW 806-A rated for?
A: The GW 806-A is rated for standard duty electric lift truck applications with typical pallet loads of 2000 to 5500 pounds, depending on your jack model and axle configuration. Do not use for loads exceeding the original equipment rating. The 95A polyurethane tread is not rated for continuous heavy-duty or extreme impact service.
