Product Description

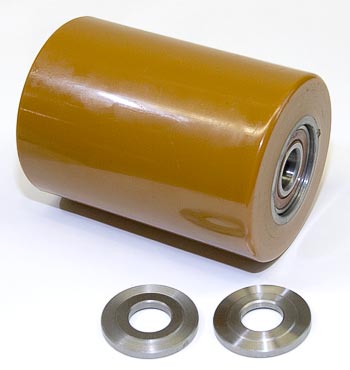

Yale YL 0652600 load wheel assembly featuring 3.25 x 4.50 inch dimensions with Durarun 95A polyurethane tread on cast iron core. Complete assembly includes 6203-2RS sealed bearings with 17mm bore. Compatible with Yale MP/MPB 040 AC electric pallet truck series. Cross-references to YL0652600, YT 0652600, and related part numbers 650546, 0652696-00, 0652696-01, 0655092-00, 2302392.
Specifications
Material & Construction
| Wheel Material | 95A durometer polyurethane tread |
| Core Construction | Cast iron hub assembly |
Mechanical Specifications
| Bearing Type | 6203-2RS sealed ball bearing |
| Bore Size | 17mm |
| Dimensions | 3.25 x 4.50 inches |
Part Numbers & Compatibility
| Part Number | YL 0652600 |
| Cross-Reference Part Numbers | YL0652600, YT 0652600, 0652600 |
| Related Yale Part Numbers | 650546, 0652696-00, 0652696-01, 0655092-00, 2302392 |
| Manufacturer | Yale Materials Handling |
| Compatible Equipment Models | Yale MP/MPB 040 AC series electric pallet trucks |
Frequently Asked Questions
Q: What are the dimensions and material of the YL 0652600 load wheel?
A: The YL 0652600 load wheel assembly measures 3.25 x 4.50 inches. It features a Durarun 95A polyurethane tread bonded to a cast iron core hub. This combination provides durability, load capacity, and floor grip for electric pallet truck operation.
Q: Which Yale models accept the YL 0652600 load wheel?
A: The YL 0652600 is compatible with Yale MP/MPB 040 AC electric pallet trucks. Cross-reference numbers include YL0652600, YT 0652600, 0652600, 650546, 0652696-00, 0652696-01, 0655092-00, and 2302392. Verify your model and serial range match the MP/MPB 040 AC specification.
Q: What bearing type is included with the YL 0652600 load wheel assembly?
A: The YL 0652600 includes 6203-2RS sealed ball bearings with a 17 millimeter bore. These sealed bearings protect against contamination and require no additional lubrication. The assembly arrives complete and ready for service.
Q: How durable is the Durarun 95A polyurethane tread on the YL 0652600?
A: Durarun 95A polyurethane is a high-durometer compound engineered for material handling equipment. It resists abrasion, cut-through, and compression set under continuous load. Typical service life depends on floor conditions, load weight, and duty cycle. Inspect regularly for flat spots, chunking, or core exposure.
Q: Can the YL 0652600 wheel be used in wet or cold storage environments?
A: The YL 0652600 features standard 95A polyurethane. For wet floors and cold storage below 32 degrees Fahrenheit, consider alternative compounds designed for enhanced traction in low-temperature and moisture conditions. Verify environmental compatibility before ordering.
Q: What is the service life expectancy of this load wheel?
A: Service life varies based on application intensity, floor surface, load weight, and maintenance. Regular inspections for wear, flat spots, or material breakdown help extend component life. Replace when tread thickness reduces significantly or damage compromises load capacity.
