Product Description

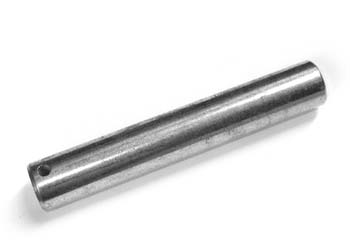

Load Wheel Axle
Frequently Asked Questions
Q: What is GW 223 used for?
A: GW 223 is a load wheel axle for manual pallet jack applications. It is used to mount and support the load wheel assembly and acts as the pivot shaft around which the wheel rotates. It is a replacement part for worn, bent, or damaged axles in manual pallet jacks.
Q: Is GW 223 compatible with all manual pallet jack models?
A: No. GW 223 compatibility is model and series specific. You must verify the part number against your jack model specification or measure the axle hole diameter and bearing bore of your existing assembly. Installing an incorrect axle size will result in loose, non-functional load wheels. Confirm your model before ordering.
Q: How do I replace a GW 223 load wheel axle?
A: Secure the pallet jack on a level work surface. Unbolt the load wheel assembly from the frame. Slide or tap out the worn axle. Insert the new GW 223 axle fully into the mounting hole and re-bolt the wheel assembly. Spin the wheel to verify smooth rotation and no binding. Installation takes 10 to 15 minutes with basic hand tools.
Q: What happens if a GW 223 axle bends?
A: A bent GW 223 axle will cause the load wheel to wobble, bind, or not rotate smoothly. The wheel may also drag sideways, making the pallet jack difficult to steer. A bent axle cannot be straightened safely and must be replaced. Continued operation with a bent axle can damage bearings and the jack frame. Replace immediately if bending is detected.
Q: Can GW 223 be used with any bearing size?
A: GW 223 is designed for load wheels with a specific bearing bore diameter. The axle diameter must match the wheel bearing bore tolerance. If the bearing bore is too large or too small, the wheel will spin freely or bind. Verify bearing compatibility with the wheel manufacturer or the original jack documentation before installing.
