Product Description

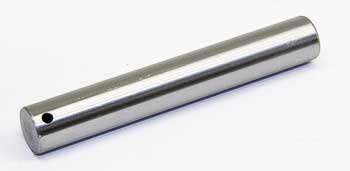

Load Wheel Axle
Frequently Asked Questions
Q: What pallet jack models does GW 227 fit?
A: GW 227 is a universal load wheel axle compatible with most manual pallet jacks rated up to 5500 lbs. Verify your jack frame width (typically 25 to 27 inches) before ordering. If your jack has been heavily modified or uses a non-standard frame, contact technical support with your jack model number and serial range.
Q: How do I know if my load wheel axle is failing?
A: Watch for grinding or squealing when raising the jack, uneven wheel wear, or resistance in rotation. Lift the jack and spin each load wheel by hand. If rotation is rough or the wheel wobbles side-to-side, the axle has internal damage and needs replacement. Do not continue operating—bearing failure can cause sudden load drop.
Q: What tools do I need to replace a GW 227 axle?
A: You will need a socket set (typically 17 to 19 mm), a flathead pry bar, and a lubricating grease gun. Remove the hub cap or snap ring, unbolt the axle from the frame (usually 2 bolts per side), and slide out the axle. Ensure the frame is supported on jack stands—never work under a suspended load. Installation is reverse; torque axle bolts to 45-55 ft-lbs.
Q: Is GW 227 equivalent to any other brands?
A: GW 227 is cross-compatible with Yale VL 58-03-00321 and Crown WA 2500 load wheel axles in the same frame width and load class. Always confirm bolt pattern, axle diameter (typically 12 mm), and bearing type (usually sealed ball bearings) before substituting. Mixing bearing types can cause premature failure.
Q: What maintenance extends GW 227 lifespan?
A: Apply grease to the axle bearing points every 250 operating hours or quarterly, whichever comes first. Use ISO VG 32 lithium-based multi-purpose grease. Inspect the axle monthly for bent shafts or seized bearings. In wet or corrosive environments, grease more frequently—every 100 hours. GW 227 typically lasts 3-5 years under normal warehouse conditions.
Q: What is the maximum load capacity for GW 227?
A: GW 227 is rated for a maximum static load of 5500 lbs when installed on a compatible pallet jack frame. Dynamic load (sudden impact) must not exceed 4000 lbs. If your facility regularly handles heavier loads or drop-pallets, upgrade to GW 231 (6000 lbs capacity). Exceeding rated capacity will damage bearings and shorten axle life to under 1 year.
