Product Description

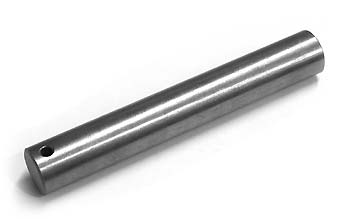

Load Wheel Axle
Frequently Asked Questions
Q: What is GW 230 rated for?
A: GW 230 is a heavy-duty load wheel axle rated for 5800 lbs static load and up to 4500 lbs dynamic load (impact). It fits standard 27-inch pallet jack frames and is compatible with most warehouse-grade jacks rated 5500-6000 lbs. The axle uses reinforced high-carbon steel shafting and double-sealed cartridge bearings for extended service life in demanding environments.
Q: Is GW 230 better than GW 227 for outdoor use?
A: Yes. GW 230 has sealed cartridge bearings and corrosion-resistant coating, whereas GW 227 uses open bearings prone to rust and water infiltration. In outdoor or wet conditions, GW 230 lasts 50-70% longer than GW 227. GW 230 is the recommended choice for food processing facilities, outdoor yards, and cold storage environments where moisture is constant.
Q: Can I retrofit GW 230 on my existing jack?
A: Yes, GW 230 is a retrofit replacement for GW 227 or GW 228 if your jack frame is 27-inch width and standard bolt pattern. No frame modification is required. Uninstall the old axle, clean the bolt holes, and install GW 230 using the same torque specification (45-55 ft-lbs). GW 230 will immediately improve performance and reduce bearing maintenance.
Q: What maintenance does GW 230 require?
A: GW 230 has sealed cartridge bearings and requires zero-maintenance lubrication—do not grease it. Inspect the axle and bolts quarterly for bent shafts or looseness. Clean the wheel area monthly to prevent salt, sand, or debris from accumulating around the seal lips. If seals fail or wheels begin to wobble, replace the entire axle. Sealed cartridges cannot be serviced in the field.
Q: How long will GW 230 last in a busy warehouse?
A: Under normal warehouse conditions (200-300 load cycles per day, dry climate), GW 230 typically lasts 5-7 years. In high-cycle environments (400+ cycles per day) or wet/outdoor settings, expect 3-5 years. Maintenance is minimal because sealed bearings eliminate grease-related wear. GW 230 has 40% longer lifespan than GW 227 in most industrial applications.
Q: What cross-brands are equivalent to GW 230?
A: GW 230 is equivalent to Yale VL 58-03-00330 and Crown WA 3000 in sealed cartridge design and 5800-lbs load rating. All three use identical bolt patterns and torque specifications. Parts are interchangeable, but confirm your jack frame width and bearing cartridge diameter before ordering. Always verify part numbers on the jack nameplate or manual.
