Product Description

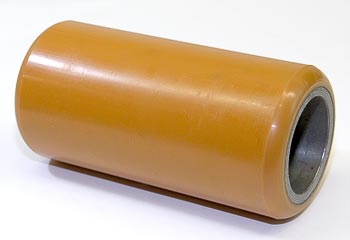

Load wheel assembly for Big Joe electric lift trucks, specifically OEM part BJ 9136-14. Features industrial polyurethane tread, sealed dual ball bearings, and compatibility with E30/E-30 electric pallet jack models. Supersedes BJ 9136-14-XL; interchangeable with Durarun 95A. Technical dimensions: 2.75 inch diameter x 3.5 inch width, 97A durometer.
Specifications
Material & Construction
| Tread Material | Polyurethane (XL 97A durometer for BJ 9136-14-XL; 95A poly for interchange) |
| Wheel Core Material | Machined steel core |
| Bearing Type | Sealed deep groove ball bearing (2 per assembly) |
Part Numbers & Compatibility
| OEM Part Number | BJ 9136-14 |
| Manufacturer Part Number | BJ 9136-14 |
| Cross-Reference Part Numbers | BJ 9136-14-XL, equivalent to BJ 9136-14, fits select Big Joe E30, E-30 electric pallet trucks |
| Compatible Truck Models | Big Joe E30, E-30 electric pallet jack |
| Supersedes/Interchange | BJ 9136-14-XL, 95A, Big Joe OEM 2320-601100-00 |
Performance Specifications
| Rated Wheel Hardness | 97A durometer for BJ 9136-14-XL, 95A for interchange |
Frequently Asked Questions
Q: What equipment does the BJ 9136-14 load wheel fit?
A: The BJ 9136-14 load wheel assembly is designed for Big Joe E30 and E-30 electric pallet jack models. It is a direct OEM replacement and is interchangeable with Durarun 95A wheels. Always verify your truck model number before ordering.
Q: What are the exact dimensions and material specifications?
A: The BJ 9136-14 measures 2.75 inches in diameter by 3.5 inches in width. It features industrial polyurethane tread with a 97A durometer rating (Shore A hardness). The wheel includes sealed dual ball bearings for smooth operation under load.
Q: Does the BJ 9136-14 supersede any older part numbers?
A: Yes, the BJ 9136-14 supersedes the BJ 9136-14-XL designation. If your equipment currently uses BJ 9136-14-XL, you can replace it with the standard BJ 9136-14 without compatibility issues.
Q: What is the polyurethane material rating and why does it matter?
A: The 97A durometer rating indicates a high-hardness polyurethane compound suitable for heavy-load industrial applications. This hardness level provides good wear resistance and load-bearing capacity while maintaining grip on standard warehouse floors.
Q: Are the bearings sealed and what type are they?
A: Yes, the BJ 9136-14 features sealed dual ball bearings. The sealed design protects against dust and debris ingress, extending bearing life in typical warehouse and manufacturing environments.
