Product Description

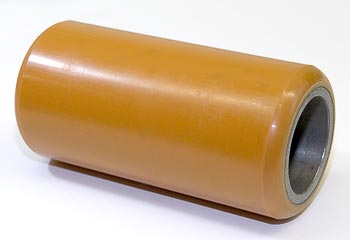

Big Joe BJ S2364 electric pallet truck load wheel features a 3.00 inch outer diameter and 4.50 inch width, constructed with abrasion-resistant Poly XL 97A polyurethane tread and a steel core. Designed for fork mounting with twin precision ball bearings, it directly replaces BJ S2364 and supersedes BJ S2364-XL. Compatible with Big Joe Deluxe Electric Pallet Truck (including E30 model types).
Specifications
Dimensions
| Outer Diameter | 3.00 inches |
| Width | 4.50 inches |
Material & Construction
| Tread Material | Polyurethane, Poly XL 97A (shore hardness A) |
| Wheel Core Material | Machined steel |
| Construction Method | Precision-bonded polyurethane to steel core |
Bearing & Mounting
| Bearing Type | Twin precision ball bearings |
| Mounting Type | Fork mount |
Part Numbers
| Original Equipment Part Number | BJ S2364 |
| Vendor Part Number | BO 25029-A |
| Superseded Part Numbers | BJ S2364-XL |
Compatibility
| Compatible Equipment Models | Big Joe Deluxe Electric Pallet Truck, Big Joe E30 |
Frequently Asked Questions
Q: What are the dimensions of the BJ S2364 load wheel?
A: The BJ S2364 load wheel has a 3.00 inch outer diameter and 4.50 inch width. These dimensions make it suitable for fork mounting on Big Joe Deluxe Electric Pallet Truck models, including the E30 series.
Q: Which pallet jacks are compatible with the BJ S2364 wheel?
A: The BJ S2364 directly replaces load wheels on Big Joe Deluxe Electric Pallet Truck models and is compatible with Big Joe E30 model types. Verify that your equipment has twin precision ball bearing mounting points before ordering.
Q: What material is the BJ S2364 tread made from?
A: The BJ S2364 features an abrasion-resistant Poly XL 97A polyurethane tread with shore hardness A durometer rating. The wheel is bonded to a steel core for load capacity and durability. This polyurethane compound is durable and resists general wear.
Q: How long does the BJ S2364 load wheel last?
A: Expected lifespan is 3 to 5 years under normal warehouse conditions and regular maintenance cycles. Polyurethane load wheels typically wear faster than caster wheels due to continuous contact during load handling. Monitor for flat spots, cracking, or reduced traction.
Q: What are the cross-reference part numbers for the BJ S2364?
A: The BJ S2364 supersedes the BJ S2364-XL. The vendor part number BO 25029-A (Boman) is also referenced as equivalent. The BJ S2364 is the current recommended replacement for both older part numbers.
Q: What bearing type does the BJ S2364 use?
A: The BJ S2364 is equipped with twin precision ball bearings that provide smooth rotation and support load weight. These sealed ball bearings resist contamination and require minimal maintenance during normal operation.
