Prime Mover OEM Load Wheel for Electric Pallet Trucks
PR 27626-03
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Reference Diagrams
Visit our diagram page for part references to popular models
Product Description

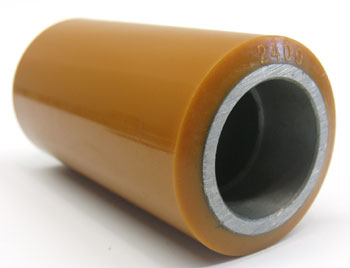

PR 27626-03 is a Prime Mover load wheel featuring a Durarun 95A polyurethane tread over cast iron core, equipped with 6205-2RS sealed ball bearings, cross-referenced as PM27626-03 and compatible with BT Prime Mover electric pallet trucks.
Specifications
Dimensions & Size
Material & Construction
| Tread Material | Durarun 95A polyurethane |
| Tread Hardness | 95 Shore A |
| Hub Construction | One-piece cast iron hub |
| Finish | Uncoated (as-machined) |
Bearing Specification
| Bearing Type | 6205-2RS sealed ball bearings |
| Bearing Sealing | 2RS (rubber seals both sides) |
Part Numbers & Compatibility
| Manufacturer Part Number | PR 27626-03 |
| Cross-Reference Part Numbers | PM27626-03, PR2762603, PM2762603 |
| Equivalent Part Number | PR 27626-03-A |
| Complete Assembly Part Number | PR 27626-000 (set of 4 wheels) |
Frequently Asked Questions
Q: What are the dimensions of the PR 27626-03 load wheel?
A: The PR 27626-03 features a.
Q: What material and hardness rating does this wheel have?
A: The wheel features a Durarun 95A polyurethane tread with 95 Shore A hardness bonded to a one-piece cast iron hub. This medium-hard compound provides excellent abrasion resistance and load capacity for indoor warehouse operations.
Q: Which pallet truck models does the PR 27626-03 fit?
A: The PR 27626-03 is designed as a direct replacement load wheel for Prime Mover electric pallet trucks. Cross-reference part numbers include PM27626-03, PR2762603, and PM2762603 for verification across different reference systems.
Q: What type of bearings are used in this wheel?
A: The PR 27626-03 is equipped with 6205-2RS sealed ball bearings. The 2RS designation means rubber seals are fitted on both sides, protecting the bearings from dust and moisture contamination during normal warehouse operation.
Q: What is the complete assembly part number?
A: The complete four-wheel assembly is designated as PR 27626-000 and includes all four wheels with precision sealed bearings pre-installed and ready to mount.
Q: How long do these wheels typically last?
A: Wheel lifespan depends on load, floor conditions, and usage frequency. With proper maintenance and regular inspection, polyurethane load wheels typically provide 2-5 years of service. Inspect periodically for flat spots, cracks, or uneven wear.
Q: Should wheels be stored in any special way?
A: Store wheels in a cool, dry location away from direct sunlight and extreme temperatures. Keep them off the ground if possible to prevent flat spots from developing over extended storage periods.
