Product Description

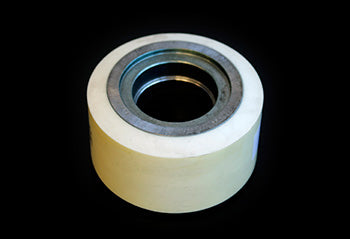

Crown load wheel assembly for RC Series electric pallet jacks. Polyurethane construction with 5.00 inch outer diameter, 2.88 inch tread width, and 2.44 inch bearing bore. Features bearing number 6305 and 95 Shore A hardness rating.
Specifications
Material & Construction
| Wheel Material | Cast polyurethane |
Part Numbers & Compatibility
| Cross-Reference Part Numbers | CR115032, 115032, Crown 115032 |
| Bearing Specification | Bearing number 6305 |
Frequently Asked Questions
Q: What is the CR 115032-040 and what equipment does it fit?
A: The CR 115032-040 is a Crown load wheel assembly designed for RC Series electric pallet jacks. It features polyurethane construction with a 5.00 inch outer diameter, 2.88 inch tread width, and 2.44 inch bearing bore to accommodate bearing number 6305.
Q: What are the key specifications for the CR 115032-040?
A: Outer diameter is 5.00 inches, tread width is 2.88 inches, bearing bore diameter is 2.44 inches, and hardness rating is 95 Shore A. The wheel uses bearing number 6305, which is a standard deep-groove ball bearing sized to fit this bore specification.
Q: What does the 95 Shore A hardness mean for performance?
A: The 95 Shore A rating indicates a moderately hard polyurethane compound suitable for high-load industrial applications. This hardness provides good load distribution, resistance to compression set, and extended wheel life under the continuous use typical of pallet jack operations.
Q: How do I verify bearing compatibility for the CR 115032-040?
A: The wheel is designed for bearing number 6305. Before ordering, confirm your RC Series pallet jack is equipped with 6305 bearings and that the 2.44 inch bearing bore matches your existing wheel size. Cross-reference bearing dimensions if using aftermarket replacements.
Q: What is the typical replacement interval for this wheel assembly?
A: Cast polyurethane wheels of this hardness rating typically perform for 12-20 months in regular warehouse environments. Heavier use, outdoor conditions, or rough concrete surfaces may reduce lifespan. Inspect regularly for flat spots, cracks, or uneven tread wear as indicators of needed replacement.
Q: Are there cross-reference part numbers for the CR 115032-040?
A: Cross-reference numbers include CR115032, 115032, and Crown 115032. These all refer to the same basic wheel design, though specific assembly variants exist. Always verify the complete part number matches your RC Series pallet jack specifications before ordering.
