Product Description

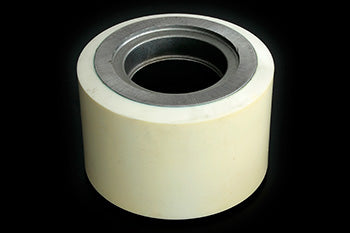

Crown CR 125070-040 load wheel, polyurethane construction, 6.00 inch outside diameter, 4.12 inch tread width, 3.149 inch bearing bore, 0.98 inch bore depth, Shore A 93A hardness, compatible with Crown electric lift trucks and pallet jacks.
Specifications
Material & Construction
| Wheel Material | Polyurethane |
Part Numbers
| OEM Part Number | CR 125070-040 |
| Alternative Part Numbers | CR125070-040-A, 125070-040-A |
Frequently Asked Questions
Q: What are the complete specifications of the CR 125070-040 load wheel?
A: The CR 125070-040 features polyurethane construction with 93A Shore hardness, 6.00 inch outside diameter, 4.12 inch tread width, 3.149 inch bearing bore, and 0.98 inch bore depth. It is compatible with Crown electric lift trucks and pallet jacks.
Q: What does the 3.149 inch bearing bore dimension mean?
A: The 3.149 inch bearing bore is the inner diameter where the bearing mounts on the wheel. This dimension must match your equipment axle size exactly. The 0.98 inch bore depth indicates how deep the bearing pocket extends into the wheel.
Q: Is the CR 125070-040 compatible with pallet jacks as well as lift trucks?
A: Yes, the CR 125070-040 is compatible with both Crown electric lift trucks and electric pallet jacks requiring 6 x 4.12 inch load wheels with 3.149 inch bearing bores. Verify your specific equipment model before ordering.
Q: What do the alternative part numbers CR125070-040-A and 125070-040-A mean?
A: CR125070-040-A and 125070-040-A are cross-reference equivalent part numbers for the CR 125070-040. These variations may appear in different Crown documentation or catalogs but represent the same wheel specification.
Q: How does the 93A Shore hardness of the CR 125070-040 compare to other load wheels?
A: The 93A Shore hardness provides moderate durability and load capacity. Wheels with higher hardness ratings (96A, 97A) offer greater load capacity but less traction; lower hardness ratings provide better grip but wear faster. The 93A rating balances load capacity with floor grip for general Crown equipment applications.
