Product Description

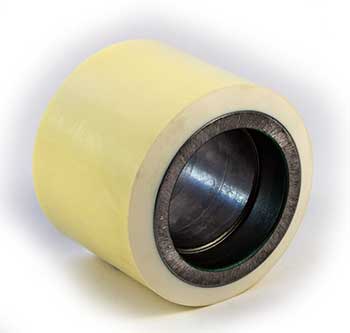

CR 83587-040 is a polyurethane load wheel assembly for Crown electric pallet trucks, featuring 5.00 inch outside diameter, 4.12 inch tread width, and 2.44 inch bore with shoulder bearing compatibility. Designed for electric lift truck load support applications as OEM replacement part.
Specifications
Material & Construction
| Tread Material | Polyurethane compound |
| Wheel Core Material | Steel core |
Part Numbers
| OEM Part Number | CR 83587-040 |
| Manufacturer Part Number | CR83587-040 |
| Alternate Crown Number (similar series, not cross-reference) | CR 83587-035 (not equivalent, but same family) |
Frequently Asked Questions
Q: What are the key dimensions of the CR 83587-040?
A: The CR 83587-040 has a 5.00 inch outside diameter, 4.12 inch tread width, and 2.44 inch bore diameter. The wider tread width distributes loads more evenly, reducing pressure on individual bearing points.
Q: Is the CR 83587-040 suitable for Crown electric pallet trucks?
A: Yes, the CR 83587-040 is designed for Crown electric pallet trucks. It provides load support through a polyurethane tread bonded to a steel core. Confirm your truck model and serial range match this OEM part number before ordering.
Q: What material composition does the CR 83587-040 use?
A: The CR 83587-040 features a polyurethane tread compound bonded to a steel core. Steel cores provide structural integrity and load rating support, while polyurethane treads offer floor grip and shock absorption.
Q: How does the CR 83587-040 differ from the CR 83587-035-A?
A: The CR 83587-040 has a wider 4.12 inch tread width compared to the CR 83587-035-A at 2.88 inches. Both share the same 5.00 inch outside diameter and 2.44 inch bore. The wider tread is useful when higher load distribution and stability are needed.
Q: Does the CR 83587-040 have a shoulder bearing?
A: The CR 83587-040 is designed with shoulder bearing compatibility for Crown electric pallet truck applications. Confirm axle diameter and bearing type match your equipment before installation.
Q: What performance advantages does a wider tread width provide?
A: The wider 4.12 inch tread on the CR 83587-040 spreads load pressure over a larger contact area, reducing per-unit pressure on floor surfaces and extending wheel life. This is beneficial in high-frequency dock operations and on uneven warehouse floors.
