Product Description

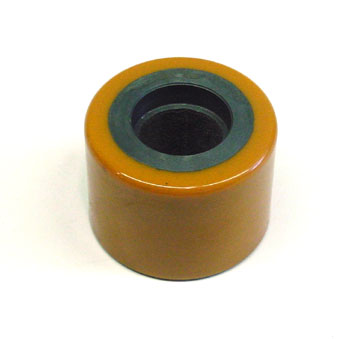

CT 1049809 Caterpillar load wheel assembly for electric lift truck applications. Polyurethane tread, 3.25 inch outside diameter, 5.00 inch tread width, 20 mm bearing bore, 6204 ball bearing, for 2200 lb capacity at 24 inch load center. Compatible with specified Caterpillar electric lift truck models. Replaces 1049809, supersedes 91A24-02301, equivalent to HYG128050.
Specifications
Material
| Tread Material | Polyurethane |
| Hub Material | Machined steel |
| Durometer Hardness | Shore A 95 |
Part Numbers
| SKU | CT 1049809 |
| OEM Part Number | 1049809 |
| Cross-Reference Part Numbers | Replaces 1049809, supersedes 91A24-02301, equivalent to HYG128050 |
Frequently Asked Questions
Q: What are the specifications for the CT 1049809 load wheel assembly?
A: The CT 1049809 is a polyurethane load wheel assembly with a 3.25 inch outside diameter, 5.00 inch tread width, 20 mm bearing bore, and 6204 ball bearing. The polyurethane tread has a Shore A 95 durometer hardness with a machined steel hub. It is rated for 2200 lb capacity at 24 inch load center and is designed for Caterpillar electric lift truck applications.
Q: What cross-reference part numbers are available for CT 1049809?
A: The CT 1049809 replaces OEM part number 1049809, supersedes 91A24-02301, and is equivalent to HYG128050. Verify your equipment documentation to confirm compatibility with these cross-reference numbers before ordering.
Q: Is the CT 1049809 compatible with my Caterpillar electric lift truck?
A: The CT 1049809 is engineered for specified Caterpillar electric lift truck models. Verify the OEM part number on your equipment (1049809, 91A24-02301, or HYG128050) to confirm compatibility. Dimensional specifications include 3.25 inch diameter and 5.00 inch tread width, which must match your fork carriage load wheel pocket.
Q: What material properties make the CT 1049809 suitable for electric lift truck service?
A: The CT 1049809 features a polyurethane tread compound at Shore A 95 hardness with a machined steel hub, designed to withstand the rolling and load-bearing demands of electric lift truck service. The 6204 ball bearing supports smooth rotation and minimal friction during load center operations. This construction provides durability in standard warehouse and light-duty loading environments.
Q: What is the load capacity and intended use of the CT 1049809 wheel?
A: The CT 1049809 is rated for 2200 lb capacity at 24 inch load center and is designed for fork tip rolling support in electric lift truck applications. Do not exceed this capacity rating, as overloading will accelerate wear and compromise wheel integrity.
