Product Description

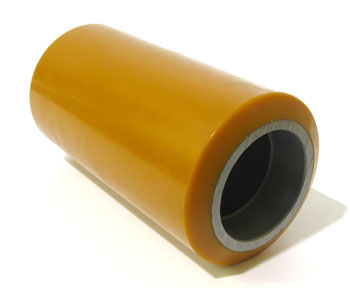

The GW 534 Load Wheel is a high-performance polyurethane tread wheel assembly designed specifically for electric lift trucks. This durable wheel is engineered to provide reliable load handling and is an ideal replacement for electric pallet truck wheels.
Specifications: 3.250 inch diameter x 6.250 inch width (3.250" x 6.250" | 3.25 x 6.25 wheel | 3-1/4 x 6-1/4 | 82.55mm x 158.75mm)
• Constructed with a robust polyurethane tread for enhanced durability
• Features a steel core for added strength and stability
• Designed with a hardness rating of 95A for optimal performance
This load wheel is compatible with various electric pallet trucks, ensuring efficient operation and longevity in demanding environments.
Specifications
Material & Construction
| Core Material | Precision-machined steel core |
Mechanical Specifications
| Wheel Hardness | 95A Shore durometer |
Part Numbers & Compatibility
| Manufacturer Part Number | GW 534-A |
| SKU | GW 534 |
Wheel Dimensions
| Outside Diameter | 3.25 |
| Width Side to Side | 6.25 |
Frequently Asked Questions
Q: What electric lift trucks does the GW 534 load wheel fit?
A: GW 534 wheels are designed for electric lift truck platforms with standard 25mm bearing bore mounting. Verify your truck bearing ID matches 25mm (0.984 inch) before ordering. Measure your current wheel diameter and width: if they are 3.25 inches diameter by 6.25 inches width, GW 534 is a direct fit. Check the truck nameplate or maintenance manual for compatible wheel specifications. Do not assume fitment based on truck brand alone.
Q: What are the exact dimensions and load capacity of GW 534?
A: GW 534 dimensions are 3.250 inches diameter by 6.250 inches width (82.55mm x 158.75mm). Bearing bore ID is 25.000mm. The wheel is manufactured with a 95A Shore durometer polyurethane tread bonded to a precision-machined steel core. Load capacity is rated for standard electric truck duty cycles; consult the truck manufacturer for maximum load per wheel. Do not exceed truck gross vehicle weight rating.
Q: Can I replace GW 534 wheels myself on an electric pallet truck?
A: Yes, if you have basic mechanical skills and tools. Lift the truck securely on blocks to remove weight from wheels. Remove the axle pin or bolt securing the wheel to the axle. Slide the old wheel off, then slide the GW 534 onto the axle bore, aligning it with the 25mm bearing hole. Reinstall the axle pin and lock washers. Rotate the wheel by hand to confirm it spins freely and does not bind. Lower the truck and test steering response before returning to service. If the wheel binds after installation, the bearing bore may be misaligned.
Q: How long do GW 534 polyurethane wheels last in service?
A: GW 534 wheels typically provide 2 to 4 years of service on electric lift trucks used 8 hours per day in warehouse or light industrial duty. Tread wear depends on floor surface type, turning radius frequency, and load weight. Smooth concrete or polished floors cause faster wear than rough surfaces. Check tread thickness quarterly; wheels should be replaced when tread wears thin or develops flat spots. Store spare wheels in a cool, dry location away from direct sunlight to prevent polyurethane degradation.
