Product Description

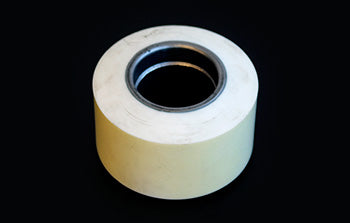

The GW 9143-XL is a high-performance polyurethane load wheel designed for use with electric and hand pallet trucks. This durable wheel is engineered to enhance material handling efficiency in industrial environments.
Specifications: 4.000 inch diameter x 2.500 inch width (4.000" x 2.500" | 4 x 2.5 wheel | 4 x 2-1/2 | 101.60mm x 63.50mm)
• Made from 97A Shore hardness polyurethane for superior durability
• Ideal for heavy-duty applications in material handling
• Provides excellent traction and stability on various surfaces
This load wheel is compatible with a range of pallet truck models, making it a versatile choice for your industrial needs.
Specifications
Certifications
| Rating/Certification | No ratings or certifications directly specified (see requirements) |
Material & Construction
| Tire Material | Polyurethane (Poly), Shore hardness 97A |
| Intended Application | Aftermarket load wheel for electric & hand pallet trucks, forklifts, and industrial material handling equipment |
Part Numbers
| Cross-Reference Part Numbers | Generic Wheel, GW9143-XL, GW9143XL, 9143XL, GW 9143-XL-A (assembly) |
Performance
| Duty Cycle | No duty cycle rating directly specified |
| Hardness | 97A Shore hardness |
Wheel Dimensions
| Outside Diameter | 4 |
| Width Side to Side | 2.5 |
Frequently Asked Questions
Q: What equipment uses GW 9143-XL wheels?
A: GW 9143-XL is an aftermarket load wheel for electric pallet jacks, hand pallet trucks, and forklifts. The 4.000 inch diameter x 2.500 inch width (101.60mm x 63.50mm) configuration is standard across many industrial material handling platforms. Verify your equipment specifications before ordering to confirm compatibility.
Q: Why is GW 9143-XL rated at 97A durometer instead of 95A?
A: GW 9143-XL uses 97A Shore hardness for heavy-duty applications. The harder formulation resists wear and cuts from rough warehouse floors and outdoor surfaces better than softer wheels. GW 9143-XL is designed for sustained industrial use where durability takes priority over ride smoothness.
Q: Can I use GW 9143-XL on both electric and manual pallet jacks?
A: Yes. GW 9143-XL is rated for both electric and hand pallet trucks. The wheel diameter and width work across both equipment types. However, always verify your specific model supports this wheel size. Mixing wheel sizes on the same jack causes binding and uneven wear.
Q: Does GW 9143-XL come as an assembly or is the bearing sold separately?
A: GW 9143-XL is the wheel only without bearing. If you need a complete assembly, order GW 9143-XL-A which includes the integrated bearing system. The 25mm bearing ID (0.984 inch bore) is standard for most jacks, but verify your equipment before purchase.
Q: What is the maximum load capacity for GW 9143-XL?
A: Load capacity depends on your jacks design, not the wheel alone. GW 9143-XL wheels are engineered for heavy-duty industrial service. Check your equipment manual for rated load limits. Do not exceed the jacks maximum capacity even if wheels appear undamaged.
Q: How do I know when GW 9143-XL wheels need replacement?
A: Replace GW 9143-XL wheels if you see flat spots, chunks missing, uneven wear, or visible cracks. If the jack pulls to one side or handles roughly, inspect the wheels first. Replace all wheels at the same time to maintain even load distribution and steering response.
