Product Description

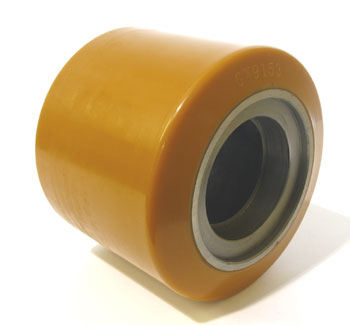

The GW 9153 load wheel is designed specifically for electric lift truck applications, providing reliable performance and durability in high-frequency industrial environments.
Specifications: 5.000 inch diameter x 4.125 inch width (5.000" x 4.125" | 5 x 4.13 wheel | 5 x 4.125 | 127.00mm x 104.77mm)
• Molded polyurethane tread with XL 97A durometer for enhanced grip and longevity
• Steel core construction for added strength and stability
• Non-marking flat tread design to protect flooring surfaces
This load wheel is compatible with universal electric pallet trucks and supersedes models GW 9150 and GW 9154, making it an excellent choice for various applications.
Specifications
Material & Construction
| Wheel Material | Polyurethane tread, steel core |
| Finish | Molded polyurethane over steel center |
| Material Specification | Poly XL 97A, steel core |
Part Numbers & Compatibility
| Cross-Reference Part Numbers | GW 9153-A, GW 9153-XL |
| Manufacturer Part Number | GW 9153 |
| Superseded Part Numbers | GW 9150, GW 9154 |
| Equivalent Part Number | GW 9153-A |
Wheel Dimensions
| Material | |
| Outside Diameter | 5 |
| Width Side to Side | 4.125 |
Frequently Asked Questions
Q: Is the GW 9153 compatible with Yale or Raymond electric lift trucks?
A: The GW 9153 is designed for electric lift truck applications. Verify your truck model against the cross-reference part numbers GW 9153-A and GW 9153-XL. Always check your current wheel bearing bore diameter and width before purchasing. Do not assume compatibility across different lift truck brands without confirming exact OEM specifications.
Q: What is the difference between GW 9153 and GW 9153-A?
A: GW 9153 features XL 97A durometer polyurethane (5.000 inch x 4.125 inch), while GW 9153-A uses Durarun 95A polyurethane (5.000 inch x 4.130 inch) with a 25mm bearing bore. The GW 9153-A is softer (95A versus 97A) and includes bearing specifications. Choose based on your truck bearing size and desired tread hardness.
Q: Can I replace a GW 9150 with a GW 9153 directly?
A: GW 9150 and GW 9154 are superseded part numbers for the GW 9153. Check bearing ID, wheel width, and axle mounting before swapping. The 127.00mm diameter is standard across these, but width tolerances may vary. If your truck was originally equipped with GW 9150, verify the new wheel fits without binding or excess play.
Q: Does the GW 9153 require bearing installation?
A: The GW 9153 has a steel core but does not include pre-installed bearings. You must install 25mm bore bearings into the wheel before mounting. If you need a complete assembly with bearings, request the GW 9153-A, which specifies bearing compatibility.
Q: Will the GW 9153 mark polished concrete floors?
A: No. The GW 9153 features a non-marking flat tread design with molded polyurethane XL 97A durometer. This compound does not stain finished floors. However, extreme heat, chemical exposure, or rough handling may affect non-marking properties over time.
Q: What is the maximum load capacity and typical lifespan?
A: Load capacity depends on axle and truck design, not the wheel alone. The XL 97A durometer rating indicates high-capacity formulation suitable for Class 2 and 3 lift truck applications. Lifespan typically ranges from 12 to 24 months in high-frequency use. Replace when tread flattens, cracks appear, or load handling becomes noticeably difficult.
