Product Description

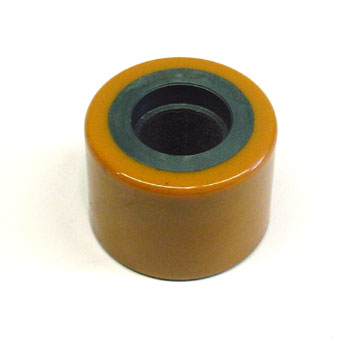

Hyster HY 1196530 load wheel assembly featuring 4.0 inch diameter by 2.875 inch width with Durarun 95A polyurethane tread bonded to cast iron core. Factory installed 6205-2RS sealed ball bearing with 25mm bore for electric pallet truck and reach truck applications.
Specifications
Material & Construction
| Wheel Material | 95A durometer polyurethane |
| Tread Compound | Durarun 95A polyurethane bonded to cast iron core |
| Core Construction | Cast iron hub with precision machined bearing pocket |
Dimensions
| Wheel Diameter | 4.0 inch |
| Wheel Width | 2.875 inch |
| Bearing Bore Size | 25mm |
Mechanical Specifications
| Bearing Configuration | 6205-2RS sealed ball bearing installed |
| Bearing Type | Double sealed radial ball bearing (2RS configuration) |
Part Numbers & Compatibility
| Part Number | HY 1196530 |
| Cross-Reference Part Numbers | Hyster 1196530, HY1196530 |
| Manufacturer | Hyster |
| Application | Electric pallet trucks and reach trucks |
Frequently Asked Questions
Q: What are the exact dimensions of the HY 1196530 load wheel?
A: The HY 1196530 features a 4.0 inch outer diameter and 2.875 inch width. The bearing pocket is machined for a 6205-2RS sealed ball bearing with 25mm bore.
Q: What polyurethane compound is used on this load wheel?
A: This wheel uses a 95A durometer Durarun polyurethane tread bonded to a cast iron core. The 95A rating provides solid wear resistance and moderate grip for general-purpose warehouse and distribution environments.
Q: Which Hyster equipment models does the HY 1196530 fit?
A: The HY 1196530 is designed for Hyster electric pallet trucks and reach truck applications. Verify that your equipment matches the 4.0 inch diameter and 25mm bearing bore before ordering.
Q: What is the core material and bearing type?
A: The wheel has a cast iron hub with a precision-machined bearing pocket. It comes factory-installed with a 6205-2RS sealed ball bearing, which provides long-term protection against moisture and contamination.
Q: Are there cross-reference part numbers for this wheel?
A: The OEM part number is Hyster 1196530. You may also see it referenced as HY1196530 (without space). Always verify dimensions and bearing specifications match your equipment.
Q: How long does a 95A polyurethane wheel typically last in service?
A: A 95A durometer wheel typically provides 12 to 24 months of service in high-volume material handling environments. Lifespan depends on floor conditions, load weights, and operating hours. Smooth concrete extends life; rough or wet floors reduce it.
