Product Description

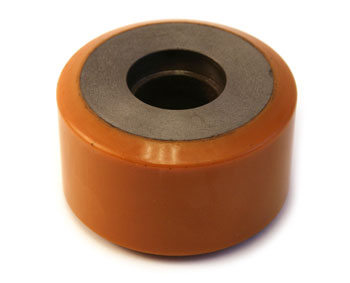

Hyster HY 1196604 load wheel assembly featuring 5.0 inch diameter by 2.875 inch width construction with 95A polyurethane tread bonded to cast iron hub. Hub face width measures 2.441 inches with 6205-2RS sealed ball bearings having 25 mm inner diameter bore. Designed as replacement load wheel component for Hyster electric pallet truck steer assemblies. Superseded by part number HY 1196604-A with alternate material variant HY1196604B utilizing Dyalon B polymer compound.
Specifications
Material & Construction
| Tread Material | 95A durometer polyurethane |
| Core Material | Cast iron hub construction |
| Alternate Tread Material | Dyalon B polymer compound (part variant 4817) |
Mechanical Specifications
| Bearing Type | 6205-2RS double sealed ball bearing |
| Tread Hardness | 95A Shore durometer rating |
Part Numbers & Compatibility
| OEM Part Number | HY 1196604 |
| Cross-Reference Part Numbers | Superseded by HY 1196604-A, alternate reference HY1196604B |
Frequently Asked Questions
Q: What are the dimensions of the HY 1196604 load wheel?
A: The HY 1196604 has a 5.0 inch outer diameter and 2.875 inch width. The hub face width is 2.441 inches. It is equipped with 6205-2RS sealed ball bearings featuring a 25mm inner diameter bore.
Q: What material is the tread and core?
A: The HY 1196604 features a 95A durometer polyurethane tread bonded to a cast iron hub. This combination delivers load-carrying capacity and durability for electric pallet truck steer assembly applications.
Q: Is this part still current or has it been superseded?
A: The HY 1196604 has been superseded by the HY 1196604-A. An alternate material variant, HY1196604B, uses a Dyalon B polymer compound (part variant 4817) for specialized applications. Confirm which version matches your equipment.
Q: What bearing type is installed?
A: The wheel comes with 6205-2RS sealed ball bearings. The 2RS designation indicates sealed on both sides, providing long-term protection against moisture and dirt contamination in warehouse and material handling environments.
Q: Which Hyster equipment is this wheel designed for?
A: The HY 1196604 is a replacement load wheel component for Hyster electric pallet truck steer assemblies. Verify that your truck matches the 5.0 inch diameter and 25mm bearing bore before ordering.
Q: What are the cross-reference and alternate part numbers?
A: The OEM part number is HY 1196604. It is superseded by HY 1196604-A. An alternate material variant is HY1196604B using Dyalon B polymer. Always verify the specific variant required for your application.
