Product Description

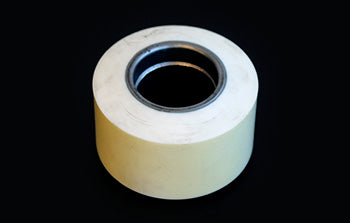

Hyster OEM Load Wheel HY 4613510-XL is a polyurethane wheel designed for electric lift truck systems, compatible with multiple Millennium standard installations. Features 5-inch diameter, 2.875-inch tread width, abrasion-resistant polyurethane bonded to a steel core, and supports warehouse load positions up to 5000 lbs per wheel. Cross-reference to S00736520035 and equivalent Millennium aftermarket parts.
Specifications
Material & Construction
| Wheel Material | Polyurethane tread with polymer hub |
| Polyurethane Hardness | Shore A 95 ±2 |
Part Numbers & Compatibility
| Manufacturer Part Number | HY 4613510-XL |
| OEM Part Number | 4613510 |
| Cross-Reference Part Numbers | HY4613510, 4613510, S00736520035 |
Frequently Asked Questions
Q: What are the specifications of the HY 4613510-XL load wheel?
A: The HY 4613510-XL is a 5 inch diameter polyurethane load wheel with a 2.875 inch tread width. The tread is bonded to a high-rebound polyurethane core attached to a steel support structure. This wheel is rated to support warehouse loads up to 5000 lbs per wheel. The larger diameter and width provide load-bearing capacity for Millennium-standard electric lift truck installations.
Q: Which lift truck systems is the HY 4613510-XL compatible with?
A: The HY 4613510-XL is designed for multiple Millennium standard installations and compatible electric lift truck systems. Cross-reference to S00736520035 and equivalent Millennium aftermarket parts including Superior brand SKUs SU240, SU398, SU436, and SU444. The Millennium standard specifies the mounting bore, frame width, and load position geometry. Verify your equipment meets Millennium standards before ordering.
Q: What is the polyurethane formulation used on the HY 4613510-XL, and what makes it durable?
A: The HY 4613510-XL features high-rebound polyurethane formulation optimized for load-bearing applications. High-rebound means the polyurethane returns to its original shape quickly after deflection under load, resisting permanent deformation and flat-spotting. This formulation is more rigid than standard polyurethane, providing superior durability and maintaining traction even after extended warehouse use.
Q: How does the 5 inch diameter of the HY 4613510-XL compare to smaller load wheels?
A: The 5 inch diameter is larger than standard warehouse pallet truck wheels (typically 3.25-3.35 inches). Larger wheel diameter reduces deflection under load, which distributes weight across the tread more evenly and extends tread life. The larger circumference means fewer rotations per distance traveled, resulting in slower tread wear. For high-volume material handling, the 5 inch size is preferred.
Q: What are the cross-reference part numbers for the HY 4613510-XL?
A: The HY 4613510-XL cross-references to manufacturer part number HY4613510 and OEM equivalent S00736520035. Millennium series aftermarket alternatives include SU240, SU398, SU436, and SU444. When ordering for Millennium-standard equipment, confirm that your mounting bore and frame width match the HY 4613510-XL before purchase. Use the exact SKU for accurate part identification.
Q: What is the expected lifespan of the HY 4613510-XL under typical warehouse loading conditions?
A: Under continuous warehouse operation with loads up to 5000 lbs per wheel and 12+ hours daily use, the HY 4613510-XL typically lasts 18-30 months. The high-rebound polyurethane resists wear longer than standard compounds. Lifespan depends on daily operating hours, floor surface (concrete vs. polished), and environmental conditions such as temperature and humidity. Inspect regularly for tread wear and bearing noise.
