Product Description

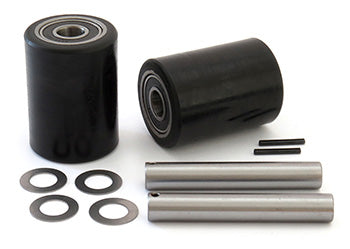

Load wheel replacement assembly kit designed for Hu-Lift model HP25L manual pallet jacks in single configuration. Kit contains two ultra-polyurethane load wheels with 70 Shore D durometer rating, measuring 2.75 x 2.875 inches in diameter. Assembly includes factory-installed precision bearings, mounting axles, and fastening hardware. Manufactured from black polyurethane material with complete installation components.
Compatibility: Fits pallet jacks made by Hu Lift, model HP25L. SKU: GWK-HP25L-LW
Specifications
Material & Construction
| Wheel Material Composition | Ultra-Polyurethane, 70 Durometer Shore D hardness |
Mechanical Specifications
| Load Wheel Assembly Configuration | Dual wheel assembly - 2 wheels per kit |
Part Numbers & Compatibility
| Manufacturer Part Number | GWK-HP25L-LW |
| Compatible Equipment Model | HP25L (Single configuration) |
Frequently Asked Questions
Q: Is GWK-HP25L-LW the correct load wheel kit for my Hu-Lift HP25L manual pallet jack?
A: Yes, if your HP25L is in single (non-tandem) configuration. GWK-HP25L-LW is designed for standard HP25L single-wheel pallet jacks. The kit includes 2 ultra-polyurethane load wheels with 70 Shore D durometer rating. If you have a tandem configuration, use GWK-HP25L-T-CK instead.
Q: What are the exact wheel dimensions for GWK-HP25L-LW?
A: GWK-HP25L-LW load wheels measure 2.75 inches diameter and 2.875 inches width. These dimensions are critical for proper fit and load distribution on HP25L axles. Do not substitute with non-matching wheel sizes as this causes steering issues and uneven wear.
Q: Are steer wheels included with GWK-HP25L-LW, or only load wheels?
A: GWK-HP25L-LW includes only the 2 front load wheel assemblies, not rear steer wheels. If steer wheels are also worn, order the complete kit GWK-HP25L-CK which includes both load and steer wheel assemblies. Using this kit alone requires that existing steer wheels remain in serviceable condition.
Q: Do GWK-HP25L-LW wheels come with pre-installed bearings and axles?
A: Yes. Each wheel assembly includes factory-installed precision bearings, mounting axles, and fastening hardware. Assembly is complete and ready to mount directly onto the jack frame. No bearing or axle installation work is required unless existing components are damaged during removal.
Q: How long should GWK-HP25L-LW wheels last in typical warehouse use?
A: Ultra-polyurethane 70 durometer wheels typically provide 3 to 6 years of service in standard warehouse environments with regular use. Life extends with smoother concrete floors and lighter daily cycle counts. Replace wheels when flat spots develop, chunks are missing, or surface becomes smooth and slippery.
Q: What happens if I install GWK-HP25L-LW on a tandem configuration HP25L jack?
A: Installation may be mechanically possible but is not recommended. Tandem jacks require specific wheel sizing and spacing for proper load distribution. Using non-tandem wheels on a tandem jack causes uneven wear, steering problems, and potential overload on certain wheels. Use GWK-HP25L-T-CK for tandem configurations.
