Product Description

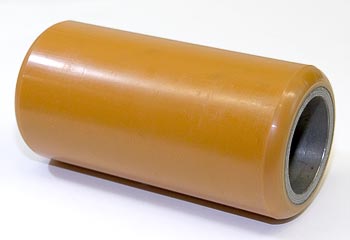

The GW 9141-A Poly Load Wheel Assembly is a high-quality replacement part designed specifically for electric lift trucks. This assembly is built to enhance the performance and durability of your equipment.
Specifications: 3.250 inch diameter x 6.500 inch width (3.250" x 6.500" | 3.25 x 6.5 wheel | 3-1/4 x 6-1/2 | 82.55mm x 165.10mm)
• Machined steel core for strength and stability
• Polyurethane tread with a hardness rating of 95A for superior grip
• Fully assembled for easy installation
This load wheel assembly is compatible with generic electric pallet jacks and can be cross-referenced with GW9141-A-DS and other related part numbers for seamless integration.
Specifications
Material & Construction
| Core Material | Machined steel |
Part Numbers
| Manufacturer Part Number | GW 9141-A |
| Cross-Reference Part Numbers | GW9141-A-DS, GW9141ADS, 9141ADS |
| Equivalent Part Numbers | GW 9141-A |
Wheel Dimensions
| Outside Diameter | 3.25 |
| Width Side to Side | 6.5 |
Frequently Asked Questions
Q: What is the difference between GW 9141 and GW 9139?
A: GW 9141 is wider (6.500 inch) compared to GW 9139 (4.500 inch). Both are 3.250 inch diameter and use polyurethane 95-A tread. GW 9141 provides a larger contact footprint for better stability on uneven surfaces. Bearing ID on GW 9141 is 25mm versus 30mm on GW 9139.
Q: Can I mix GW 9141 and GW 9139 wheels on the same truck?
A: No. Mixing wheel widths (6.5 inch versus 4.5 inch) or bearing sizes (25mm versus 30mm) creates misalignment and uneven load distribution. Install all four wheels from the same product line. Verify all wheels on your jack use the same bore size and width before purchasing.
Q: What is the machined steel core in GW 9141?
A: The core is a precision-machined steel hub that provides structural rigidity for the wheel. The polyurethane tread is bonded to this core. The steel core resists deformation under load and helps maintain bearing alignment. Steel core improves lifespan on rough warehouse floors versus solid polyurethane wheels.
Q: Is GW 9141 fully assembled and ready to install?
A: Yes. GW 9141 ships fully assembled with polyurethane tread mounted on the machined steel core and bearings installed. Simply slide onto your 25mm axle and secure the fastener. No additional assembly, bearing fitting, or alignment is required.
Q: How long does a GW 9141 wheel last in heavy-duty service?
A: Under continuous warehouse use (40+ hours per week on smooth concrete), expect 16-20 months before visible tread wear requires replacement. Rough or outdoor floors accelerate wear to 10-14 months. Regularly inspect for flat spots, cracks, or hardening of the tread compound.
Q: What is the equivalent part number to GW 9141?
A: GW 9141-A is the primary manufacturer part number. Cross-references include GW9141-A-DS, GW9141ADS, and 9141ADS. GW 9141 is the legacy base number. Always order GW 9141-A for new purchases to ensure you receive the current specification.
