Product Description

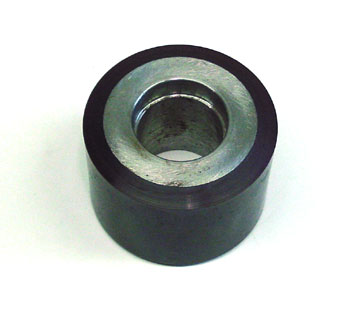

SU S654 Load Wheel, Poly 95A for electric lift truck applications features a 5 inch diameter, 3.625 inch width, and dual 2.440 inch diameter bores, constructed from 95A polyurethane for superior heavy load performance and durability. Direct manufacturer part SU S654, compatible with electric lift trucks. No available cross-reference part numbers.
Specifications: 5.000 inch diameter x 3.625 inch width (5.000" x 3.625" | 5 x 3.63 wheel | 5 x 3-5/8 | 127.00mm x 92.07mm)
Specifications
Material & Construction
| Wheel Material | Polyurethane, Durometer 95A |
| Wheel Hardness | Polyurethane hardness 95A (Shore) |
Part Numbers & Compatibility
| Manufacturer Part Number | SU S654 |
Wheel Dimensions
| Material | Cushothane XL |
| Outside Diameter | 5 |
| Inside Diameter | 2.188 |
| Width Side to Side | 3.625 |
| Tread Profile | 3/8 Radius |
| Bore Depth | 0.67 |
| Bore Outside Diameter | 2.4384 |
| Hub Width |
Frequently Asked Questions
Q: What are the specifications for the SU S654 load wheel?
A: The SU S654 has a 5.000 inch outside diameter and 3.625 inch width (127.00mm x 92.07mm). Inside diameter is 2.188 inches. It features dual 2.440 inch diameter bores. Bore depth is 0.67 inch. The wheel is constructed from Cushothane XL polyurethane with a 3/8 inch radius tread profile.
Q: Can I use the SU S654 as a direct replacement for worn wheels on my electric lift truck?
A: Only if your truck is designed for a 5 x 3.625 inch wheel with 2.440 inch bore diameter. The SU S654 cannot be retrofitted onto trucks that accept the narrower SU S653-XL-A-DS (2.875 width). Mismatched wheel widths cause axle binding and accelerated bearing wear. Always confirm the bearing bore size and hub width before ordering.
Q: What is the difference between the SU S654 and the SU S654-A assembly?
A: The SU S654 is the wheel only. The SU S654-A is a complete load wheel assembly that includes the wheel pre-mounted on a bearing hub or axle assembly. If your truck needs just the rubber wheel, order the SU S654. If you need the wheel with pre-installed bearings and hardware, order the SU S654-A assembly.
Q: Is there a cross-reference or equivalent part number for the SU S654?
A: No available cross-reference part numbers are documented for the SU S654. It is a direct manufacturer part with no direct equivalent from other brands. Always order by the exact SKU SU S654 to ensure correct fitment and performance specifications.
Q: What load rating does the SU S654 support?
A: The SU S654 is rated for mid-market industrial material handling equipment. Typical load capacity is 3000 to 5000 pounds per wheel depending on truck configuration and axle design. Never exceed the truck manufacturers total load rating. Overloading degrades the wheel and bearing assembly prematurely.
Q: How do I diagnose if my SU S654 wheels are failing?
A: Check for flat spots, cracks in the tread, or chunks of rubber missing from the sidewall. Listen for grinding or squealing when the truck moves, which indicates bearing damage. Feel for resistance when turning the wheel by hand. Replace wheels immediately if visible damage appears or if the truck pulls to one side during operation.
