Product Description

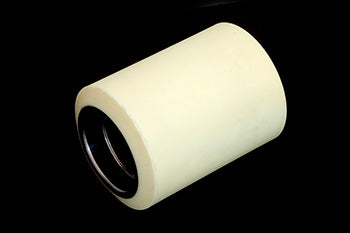

Toyota OEM Load Wheel Poly 97 XL, part number TO 00590-47625-71, engineered for electric lift truck applications. Constructed with abrasion-resistant 97A polyurethane and precision-machined steel core, suitable for Toyota 7HBW pallet trucks and equivalent series. Supersedes original 00590-47625-71; available in assembly as 00590-47625-71-A. Exact-fit for 3.25 inch diameter by 4.48 inch width, 2.047 inch bore, for heavy-duty warehouse environments.
Specifications
Physical Dimensions
| Wheel Diameter | 3.25 inches |
| Wheel Width | 4.48 inches |
| Bore Size | 2.047 inches |
Material & Construction
| Tread Material | Polyurethane, 97A durometer hardness |
| Core Material | High-strength alloy steel, precision machined |
| Hardness Rating | Shore A 97 |
Part Numbers & References
| Part Number | 00590-47625-71 |
| Manufacturer Part Number | TY00590-47625-71-MIL |
| Cross-Reference Numbers | Equivalent to 00590-47625-71-MIL, TY-TY00590-47625; superseded by 00590-47625-71-A (assembly with bearings); compatible with Millennium Hyload Poly 3.25 x 4.5 applications |
| Compatible Models | Toyota 7HBW23 electric pallet truck, other Toyota electric pallet jack models with identical load wheel design |
Associated Components
| Compatible Bearings | BS 6205 2RS bearing |
| Related Parts | Toyota bushing 00590-43276-21, axle 00590-43547-71 |
Frequently Asked Questions
Q: What are the dimensions of the 00590-47625-71 load wheel?
A: This wheel measures 3.25 inches in diameter by 4.48 inches in width with a 2.047 inch bore. It is constructed with abrasion-resistant 97A polyurethane tread bonded to a precision-machined steel core for heavy-duty warehouse applications.
Q: Which Toyota models is the 00590-47625-71 compatible with?
A: This load wheel is designed for Toyota 7HBW23 electric pallet trucks and equivalent Toyota electric pallet jack series. It also fits applications that previously used the original 00590-47625-71 part number or the Millennium Hyload Poly 3.25 x 4.5 configuration.
Q: What material properties make this wheel suitable for warehouse use?
A: The 97A Shore durometer polyurethane provides excellent abrasion resistance and load stability. The precision-machined steel core withstands heavy loads in demanding warehouse environments. The combination resists wear from concrete floors and frequent load cycles.
Q: What are the cross-reference part numbers for the 00590-47625-71?
A: The 00590-47625-71 is equivalent to 00590-47625-71-MIL and TY-TY00590-47625. The manufacturer part number is TY00590-47625-71-MIL. It is superseded by the 00590-47625-71-A assembly which includes pre-installed sealed bearings.
Q: Is this wheel available as an assembly with bearings?
A: Yes. The 00590-47625-71 wheel is available as an assembly with dual-row sealed bearings under part number 00590-47625-71-A, which includes bearings pressed and ready for axle mounting.
Q: What bearing type is compatible with this wheel?
A: The BS 6205 2RS sealed bearing is the compatible bearing specification for this wheel. It works with Toyota axle 00590-43547-71 and bushing 00590-43276-21.
