Product Description

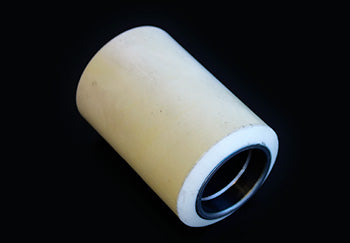

CR 82741-XL is a Crown OEM load wheel assembly featuring 5 inch outside diameter, 2.44 inch bore, 4.12 inch polyurethane tread width, and XL 97A hardness bonded to a steel core. Compatible with select Crown electric lift truck models for high-load, frequent duty cycles.
Specifications
Material & Construction
| Tread Material | Polyurethane, Shore A 97 hardness |
| Bonding Technology | XL3 bonding agent with steel core |
| Core Material | High-strength steel core |
Part Numbers
| OEM Part Number | CR 82741-XL |
| Manufacturer Part Number | CR 82741-XL |
Frequently Asked Questions
Q: What are the detailed specifications of the CR 82741-XL load wheel?
A: The CR 82741-XL features a 5 inch outside diameter, 2.44 inch bore, and 4.12 inch tread width. It employs XL 97A polyurethane hardness bonded to a high-strength steel core using XL3 bonding technology. This configuration is rated for high-load, frequent duty cycles in Crown electric lift trucks.
Q: What does the XL designation and 97A hardness mean for performance?
A: The XL designation refers to the XL3 bonding agent technology that reinforces the polyurethane-to-steel bond, improving durability under extreme loading and cycle rates. The 97A Shore A hardness provides maximum resistance to wear, deformation, and heat generation in heavy-duty warehouse and material-handling operations.
Q: Which Crown electric lift truck models use the CR 82741-XL?
A: The CR 82741-XL is designed for select Crown electric lift truck models rated for high-load and frequent duty cycles. Verify your equipment model, serial range, and current wheel dimensions (5 inch OD, 2.44 inch bore) before ordering. This wheel is not interchangeable with smaller bore or different diameter alternatives.
Q: How does the CR 82741-XL perform compared to standard Crown load wheels?
A: The CR 82741-XL offers superior durability due to XL3 bonding technology and 97A hardness, making it suitable for continuous, high-load applications. Standard wheels like the CR 82741 (95A) are softer and better for moderate-duty service. Use the CR 82741-XL in environments with heavy stacking, frequent cycles, or demanding floor conditions.
Q: What factors determine when the CR 82741-XL should be replaced?
A: Replace the CR 82741-XL when tread shows significant wear, flat spotting, or chunking. Audible grinding, excessive vibration, or steering drift also indicate replacement need. Despite superior bonding and hardness, service life in high-cycle operations typically ranges from 12 to 24 months depending on floor surface and load intensity.
